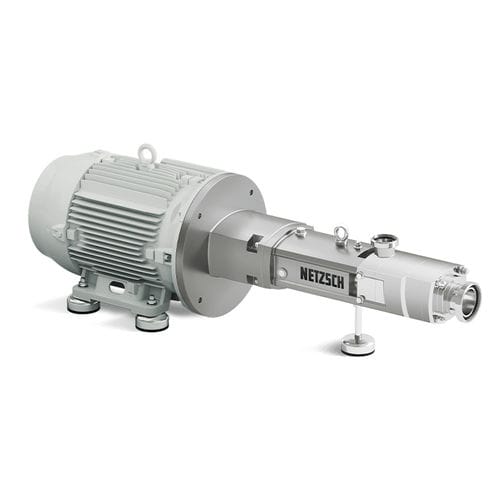

Twin-auger pump NOTOS® 2NSH
for chemicalsfor food productswith electric motor

twin-auger pump
twin-auger pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, for food products
Operation
with electric motor
Priming
self-priming
Technology
twin-auger
Mobility
stationary
Domain
industrial, for the chemical industry, for the pharmaceutical industry, for the food industry, for the cosmetics industry, for hygienic applications
Applications
transfer, metering, conveying
Fluid specification
for solids-laden fluids, for low-viscosity fluids, for medium-viscosity products, for high-viscosity fluids
Other characteristics
compact
Flow

Min.: 11 m³/h
(388.46133 ft³/h)

Max.: 200 m³/h
(7,062.93334 ft³/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Description

The NOTOS® 2NSH hygienic twin screw pump in FSIP® (Full Service in Place) design impresses with gentle pumping, low pulsation, simple maintenance and ease of operation in the process. With its stable and compact housing and efficient design, the twin screw pump is ideal for industries that value high quality, maximum productivity and excellence throughout the process: A reliable solution tailored to the individual requirements of a application. It is designed for hygienic applications to optimally convey media with higher viscosity at high working pressures up to 16 bar or 230 psi. Chocolate, fruit juices or fruit yoghurt, for example, are pumped while retaining their consistency and natural properties without any loss of quality. The FSIP® concept makes it possible to completely dismantle and reassemble the spindles and mechanical seal without removing the pump from the production line. Downtimes for maintenance work can thus be significantly reduced. This intelligent, technical solution ensures even more convenience and safety in your processes. NOTOS® 2NSH multi screw pump: Easy to clean and sterilize The 2NSH is made of AISI 316L stainless steel and polished to international standards. Therefore, it is easy to clean (CIP - "cleaning-in-place process") and can even be sterilized (SIP - "sterilization-in-place process"). Cleaning can be carried out on the NOTOS® 2NSH without an auxiliary system. With conventional CIP cleaning, an additional pump is often necessary to keep the system clean. With the 2NSH, no other pump is required. It works as a feed pump and also as a CIP pump during the cleaning process.
