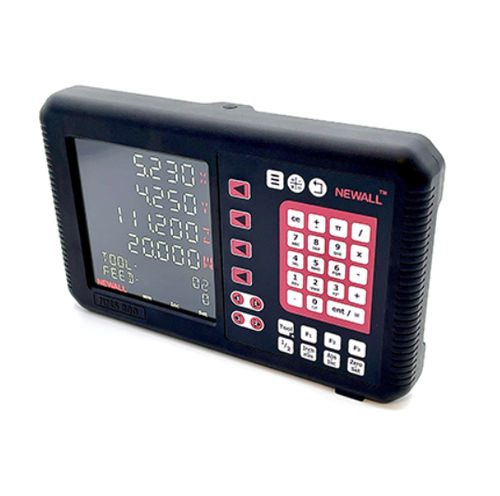

Safety information display panel NMS800

Overview
The NMS800 is the newest in Sensata | Newall’s range of premium readouts. The DRO hosts many productivity enhancing features that will increase machine tool efficiency. The NMS800, when matched with Sensata | Newall’s Spherosyn Serial and Microsyn Serial encoders, provides years of maintenance free, trouble free performance. Sensata | Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest workshop conditions.

Features

• Available in 2, 3, or 4 axes
• Clean, crisp PMVA LCD display
• Self-sensing encoder input
• Long life membrane keypad
• Linear and angular reading (model dependent)
• Safe, low voltage power supply (UL)
• Panel mount version available

Other features

• Feed rate display
• Bolt hole circle routine
• Line hole routine
• Arc contouring
• Programmable memory / teach
• Polar coordinates
• Tool offsets
• Taper calculations
• Axis vectoring / summing
• Linear and segmented error compensation
• Undo function (move back up to eight steps if a mistake is made)
• RS232 output
• Multiple languages

Downloads

• NMS800 Datasheet (PDF)
• NMS800 Digital Readout User Manual (PDF)

Technical specifications

• General Purpose Functions
  • 2, 3 or 4 axes configuration
  • Inch/mm conversion
  • Four user definable function keys
  • Absolute/Incremental operation
  • Axis pre-set / zero reset
  • Zero approach warning (graphic and audio)
  • Feed-rate display
  • Newall Encoder auto-detection
  • RPM Display* (requires rotary encoder)
  • Angular readings* (requires rotary encoder)
• Milling Specific Functions
  • Bolt hole circle / PCD calculations
  • Line hole / grid array calculations
  • Arc contouring
  • Pocket / island milling
  • Summing two encoders within the same plane
• Lathe Specific Functions
  • Radius / diameter readings
  • Tool offset library (50)
  • Taper calculation
  • Vectoring (requires 3 axes)
• Encoder compatibility
  • Serial input: Sensata | Newall Spherosyn & Microsyn Serial, Proprietary Signal (not compatible with previous Sensata | Newall DRO Encoders S2G/M2G)
  • Digital (TTL) Input: Sensata | Newall TTL Encoders and many third party TTL encoders including Rotary
• Display: PMVA LCD Screen - 127 mm x 122 mm - Membrane keypad with audible tactile feedback
• Construction: High pressure aluminum alloy cast front and rear panel
• Dimensions: Height: 187 mm (7.36 in); Width: 306 mm (12.04 in); Depth: 46.6 mm (1.83 in)
• Electrical requirements: Voltage of 100-240 VAC (47 - 63 Hz) to external PSU included
