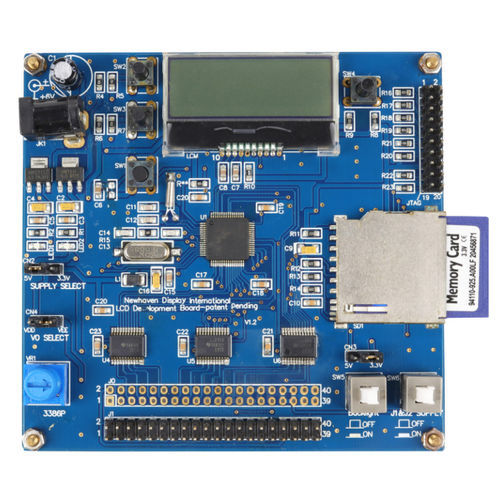

Evaluation kit NHDev Development Board

This NHDev development board V2.0 is for evaluating or prototyping our TFTs, COG, character LCDs, graphic LCDs, and OLED displays. This board is based on the STM32F103 Cortex-M3 microcontroller. The device has been preprogrammed to support most of our display modules and includes a SD card with preloaded images and text files for the supported displays and can be reloaded or edited using a PC to evaluate the displays using custom designed images or text. This development board has many features including a backlight enable switch, variable resistor to adjust contrast, 3 pushbutton user interface, MPU reset switch, and a JTAG connection with ARM2x10 pin layout for programming. This board also has 2.54mm pitch LCD develpment output pins and thru-holes. It has 6VDC power supply, and jumper to select +5V, 3.3V LCD power supply. Please click the specification link above in order to view a detailed user guide and full list of supported displays. The LCD interface cable is sold separately or build your own.
