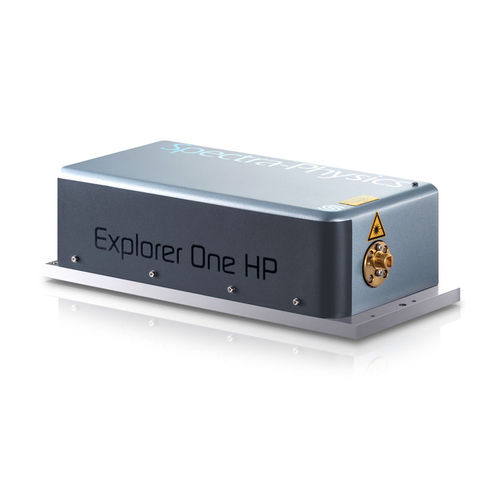

Short-pulse laser Explorer® One™

solid-stategreenUV

Compact and Lightweight UV and Green ns Lasers Lightweight – only 1.5 and 4.1 kg, air cooled design Unique It’s in the Box™ design – smaller than any competitive product Feature rich software for ease-of-use and simplified integration E-Track™ – active pulse energy and power control on selected mode Single pulse energy measurement from single shot to 500 kHz Rugged, reliable design and construction for demanding 24/7 applications Features Overview The Explorer® One™ is the most compact series of UV and green diode pumped solid state (DPSS) q-switch lasers in its class. The It’s in the Box™ design incorporates features such as the very compact air cooled design, short pulse width, high peak power and a feature rich software into one single package to satisfy customer needs with benefits such as ease-of-use and handling, high process quality and short time-to-market in cost sensitive tools. Three Industrial Platforms The Explorer One laser models are available on three platforms. The standard platform provides up to 800 mW and 355 nm, 2 W at 532 nm. High energy models are available with pulse energies exceeding 120 µJ at 349 nm, 80 µJ at 355 nm and 180 µJ at 532 nm. The extended power platform, Explorer One XP, is available with power exceeding 2 W at 355 nm and 5 W at 532 nm. The high power platform, the Explorer One HP, is available with a power exceeding 6 W at 355 nm. High Performance and Reliability in a Compact Size The Explorer One Family consists of rugged and durable industrial laser designed for longevity and long-term stability in 24/7 applications.ration for machine tool builders especially when space is a limiting factor.
