tunable laser / broadband / compact / sealed
Matisse C series
compact, sealed, automated, Ti:sapphire
Max.: 1,038 nm
Min.: 665 nm
Max.: 6.5 W
Min.: 0.56 W
COMPACT ULTRA-NARROW LINEWIDTH
Ti:SAPPHIRE TUNABLE RING LASER
Compact, sealed, fully automated design
Hands free operation
Broad tuning range (>300 nm) with one optics set
Widest mode-hop-free piezo tuning >50 GHz

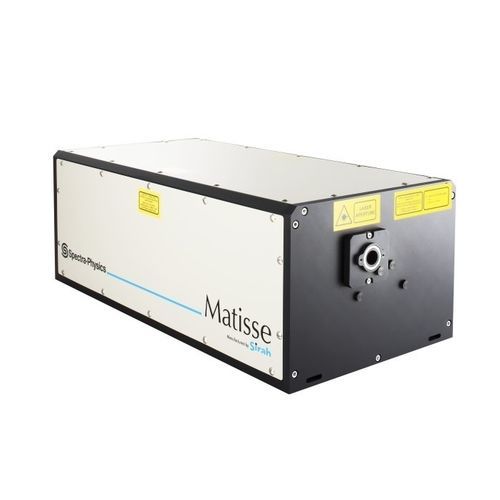

The Spectra-Physics® Matisse® C is a fully automated and compact single frequency ultra-stable, Out of Plane tunable ring laser. The Matisse C system has the industry’s highest output power, the narrowest external linewidth, and the broadest mode-hop-free tuning range. The compact, sealed, and fully automated design with broadband mirrors and specially developed optical mounts provide long term stability and truly hands free operation.
Coupled with the Millennia® eV™ pump laser, the Matisse C produces up to 6.5 W of output power. The Matisse C provides more than 300 nm of tuning with one optics set and linewidths down to 30 kHz.
The Matisse C is fully automated for truly hands free operation. The laser is controlled with an intuitive GUI for quick and easy wavelength selection, piezo scanning, and frequency locking. It is housed in a compact closed box with no external adjustment knobs. Broadband coated mirrors enable uninterrupted tuning across 700–1000 nm while eliminating the need to change optics sets.
