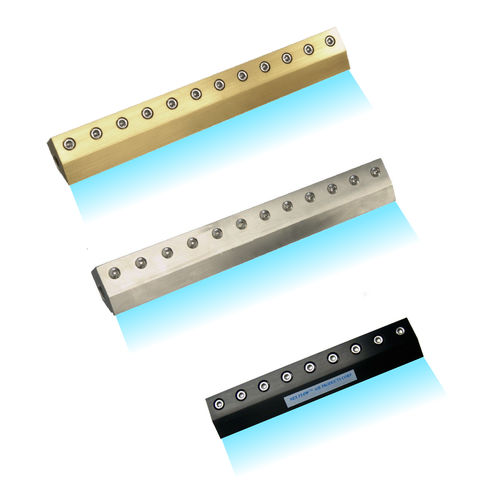

Blowoff operation air knife 10002X
aluminum

Add to favorites

Compare this product

Go to the Nex Flow Air Products Corp. website for more information

Characteristics

Applications

for blowoff operations

Material

aluminum

Pressure

Max.: 8.4 bar
(121.83 psi)

Min.: 0.7 bar
(10.15 psi)

Air consumption

Max.: 1,614 l/min
(426.37 us gal/min)

Min.: 19.8 l/min
(5.23 us gal/min)

Description

The X-Stream Air Blade™ Air Knife from Nex Flow™ is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors. It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times. Our air knife systems payback on compressed air savings can be seen in some applications. Features / Advantages Quiet – 69 dBA for most applications Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel. 40:1 air amplification Stainless Steel shim Uniform airflow across entire length Variable force and flow No moving parts – maintenance free Easy mounting Compact, rugged, easy to install Stainless steel screws in all models 2" Aluminum Silent X-Stream™ Air Blade™ Air Knife - Air Knife Only
