Embedded converter module VIOB-LTE/EKEY

M.2 to mini-PCIemini-PCIe to M.2

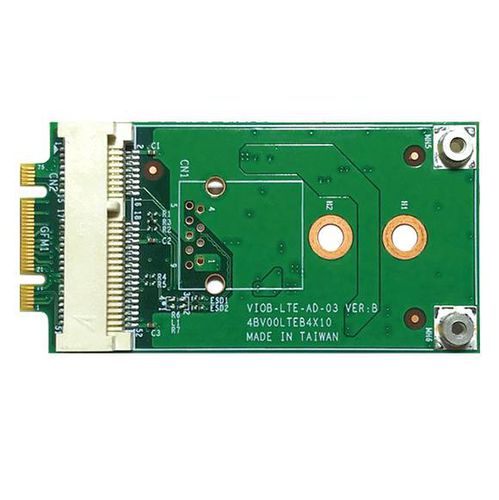

VIOB-LTE/EKEY series are M.2 to mini-PCIe converter modules and mini-PCIe to M.2 converter modules. They are designed for computers that convert 5G/4G LTE WWAN module or Wi-Fi 5/6/6E WLAN module to M.2 or full size mini-PCIe slot. Quick and easy to install on any device, they support any kind of form factor module in a vehicle system. In order to satisfy server vehicle environments, these modules are fully functional under a wide operating temperature range of -40°C to 85°C. To further ensure reliability, it is designed to meet the ESD standard of ±8KV/15KV (contact/air) based on the IEC 61000-4-2. Main Feature ‧ VIOB-LTE-AD-03 - Converter for mini-PCIe WWAN module to use in M.2 3042/3052 Key B + M slot - Supports USB 2.0, USB 3.2 (Gen1) interface of mini-PCIe module for 4G LTE ‧ VIOB-LTE-AD-04 - Converter for M.2 3042/3050/3052 Key B WWAN module to use in full size mini-PCIe slot - Supports USB 2.0, USB 3.2 (Gen1) interface of M.2 module for 5G/4G LTE ‧ VIOB-EKEY-01 - Converter for M.2 2230 Key E WLAN module to use in full size mini-PCIe slot - Supports USB 2.0, PCIe 3.0 interface of M.2 module for Wi-Fi 5/6/6E NEXCOM is a Titanium member of the Intel® Partner Alliance, as a top tier of the Alliance. Intel and more than 500 global IoT partners of the Intel® Partner Alliance provide scalable, interoperable Intel® -based technologies and solutions that accelerate deployment of intelligent devices and end-to-end analytics. Close collaboration with Intel and each other enables Alliance members to innovate with the latest technologies, helping developers deliver first in-market solutions.
