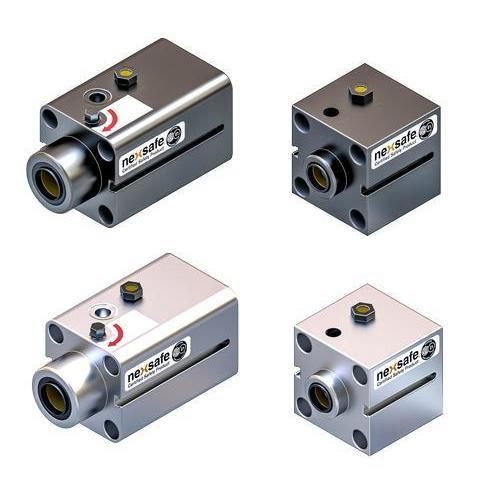

Manual rod lock NexSafe®

pneumaticspringfor the food industry

Overview
Nexen Group’s safety-certified static Rod Locks deliver precision holding with virtually no backlash, providing high accuracy in demanding industrial applications. These spring-engaged, air-released units are offered in ISO and NFPA sizes, accept standard accessories, and are designed for sealed operation in harsh environments.

Key Features

• Precision operation maintains accurate positioning
• Large clamping surface ensures consistent performance
• Spring-engaged units lock in power-off situations
• Sealed design for operation in harsh environments
• Optional manual release for controlled disengagement

Product Details
Nexen offers Rod Locks for cylinder mounting or stand-alone guide rod mounting. Units can be stacked to increase holding force. Available finishes include natural brushed aluminum or corrosion-resistant anodized finish. Optional proximity sensors provide engagement/disengagement feedback and support integration into safety circuits.

Safety Certification
Spring-engaged, air-released Rod Locks are safety rated to comply with ISO 13849-1; recommended configurations can achieve Category up to 4 and Performance Level up to e when correctly integrated.

Comparison / Typical Model
Model: RLSSB-C (examples shown as NFPA Inch and ISO Metric)
Rod Diameter: 0.625 to 2.500 in (NFPA Inch) / 12 to 32 mm (ISO Metric)
Cylinder Bore Size: 1.500 to 8.000 in (NFPA Inch) / 32 to 125 mm (ISO Metric)
Holding Force: 180 to 4,020 lbf (NFPA Inch) / 800 to 8,560 N (ISO Metric)
Starting Engagement Time: 0.030 to 0.265 s (NFPA Inch) / 0.030 to 0.130 s (ISO Metric)
Actuation / Return: Spring engaged / Air released (standard 4.1 bar / 60 PSI)
Housing Finish: Natural aluminum or black anodized finish
Manual Release: Optional 1/4-turn hex head with auto reset
Static B10 / B10d Cycle Life: 1,000,000 / 2,000,000 cycles (typical)
Operating Mode Sensors: 1 or 2 optional proximity sensors for engagement/disengagement feedback
Safety Rating: NexSafe ISO 13849-1 certified (Category up to 4, PL up to e)

Technical specifications

• Type: Spring-engaged, air-released rod lock
• Mounting options: Cylinder mount (NFPA/ISO) or stand-alone on guide rod
• Rod diameter range: 0.625 in to 2.500 in / 12 mm to 32 mm
• Cylinder bore range (when cylinder-mounted): 1.500 in to 8.000 in / 32 mm to 125 mm
• Holding force: 180 to 4,020 lbf (approx.) / 800 to 8,560 N (approx.)
• Response / starting engagement time: from 0.030 s
• Actuation/return: Spring engaged / Air released (standard 4.1 bar / 60 PSI)
• Housing finish: Natural aluminum or black anodized
• Manual release: Optional 1/4-turn hex head with auto reset
• Cycle life (typical): Static B10 = 1,000,000 cycles; B10d = 2,000,000 cycles
• Optional sensors: 1 or 2 proximity sensors for operational feedback
• Safety: ISO 13849-1 certified; recommended configurations can achieve Category up to 4, Performance Level up to e
