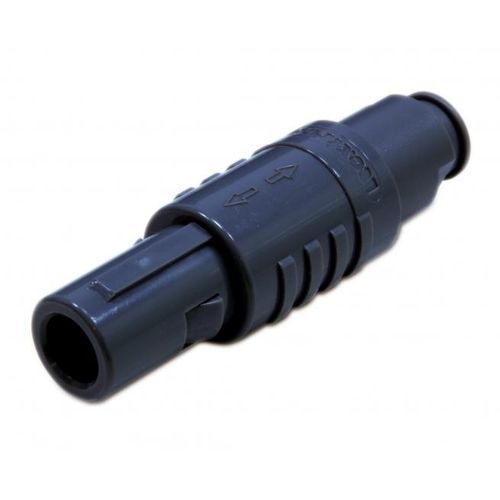

Electrical power supply connector RMPFB0P2220040radio-frequencyopticalcombined
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply, radio-frequency, optical, combined
- Connection type
- push-pull, locking
- Electrical characteristics
- multipole
- Material
- PEEK, copper, alloy, shell
- Product applications
- cable, solder, key
- Domain
- multiple
- Protection class
- IP67, IP64
- Operating temperature
Min.: -50 °C
(-58 °F)Max.: 90 °C
(194 °F)
Description
• Locking system: Push-Pull.
• Solder cup contacts.
• Multiple key options to avoid cross mating.
• Multipole 2 to 14 contacts.
• Touch & scoop proof.
• Cable diameter: 2.7mm to 6.5mm.
• Outer Shell: PSU / PEI UL 94V-0
• Contact: Copper alloy plating Au
• IP64 & IP67 when mated
• Mating cycle: > 2000 cycles
• Insulator: Polyetheretherkeytone UL 94V-O(Peek)
