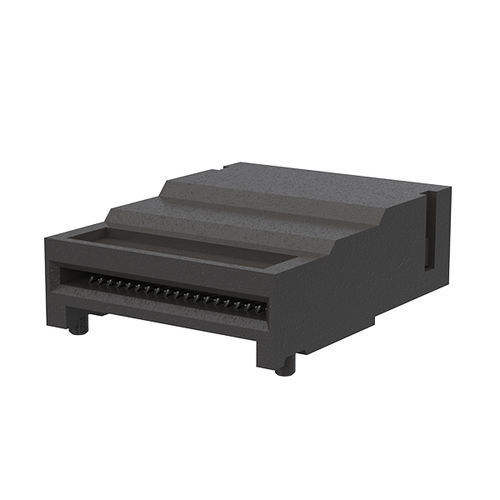

Data connector QSFP-DD
QSFP-DDQSFPPCB

data connector
data connector
Add to favorites
Compare this product

Go to the Nextronics Engineering Corp. website for more information

Characteristics

Type
data
Format
QSFP-DD, QSFP, PCB, SMT
Electrical characteristics
insulation
Material
plastic, thermoplastic, copper
Product applications
housing, cable, data center, tape
Primary current

Max.: 1 A

Min.: 0.5 A

Operating temperature

Max.: 70 °C
(158 °F)

Min.: 0 °C
(32 °F)

Description

• Doubles the density over qsfp with eight differential pairs capable of 50 GBPS each to achieve 400GBE. • Support next generation high density data center/cloud computing data transfer solutions • Housing: High temp thermoplastic, UL94 V-0,black. • Contact Resistance: AR10 milliohms Max. for signal contacts. • Transceiver Insertion Force: 90N Max. • Durability: 50 Cycles Min. • QSFP-DD cable assemblies are similar to OSFP28 4 channel (8 pair), but use double the channels to 8 (16 pair) by using a 2nd row of contact/pad locations on the front of the PCB. • Connector is traditional SMT with 4 rows • Contacts: Copper alloywith Au plated. • Insulation Resistance: 1000 MS Min. • Transceiver Extraction Force: 50N Max. Black, 15u'' Gold(Au), SMT, High Temperature Plastic, Tape & Reel+ Black, 30u'' Gold(Au), SMT, High Temperature Plastic, Tape & Reel+
Go to the Nextronics Engineering Corp. website for more information
