Data connector MiniSAS HD

press-fitcurrentPC

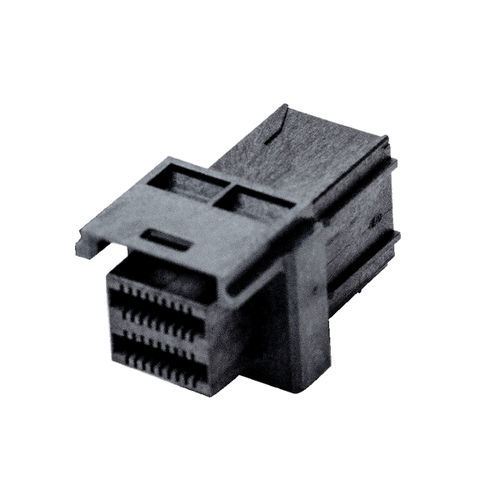

• The Connector consists of housing with double 18-position receptacle ports and with compliant pin contacts on 0.75mm centerline spacing. • The connector compliant contacts pin are press-fit mounted into a PC board with plated finished through holes. Material: • Insulators: High Temperature Thermoplastics, UL94V-0 • Plating: Gold Over Nickel for Contact Area, Tin Over Nickel for Tail • Current Rating: 0.5A Max. Per Pin • Contact Resistance: 50m Max. Per Pin • Transceiver Insertion Force: 60 N Max. • Durability: 250 Cycles Min. N Max. • Each port has a card entry slot that accepts an integrated circuit card housed in the mating plug. • The connector has a single port with two card slot openings and is configured as 1x1, 1x2, and 1×4 assemblies. • Contact: Copper Alloy • Transceiver Extraction Force: 30 N Min. 1x1, Press-fit, Black, 30u” Gold(Au), High Temperature Plastic, Right Angle 1x2, Press-fit, Black, 30u” Gold(Au), High Temperature Plastic, Right Angle 1x4, Press-fit, Black, 30u” Gold(Au), High Temperature Plastic, Right Angle
