PXI data acquisition card NXI-6100 series

16 analog inputsanalogdynamic signal

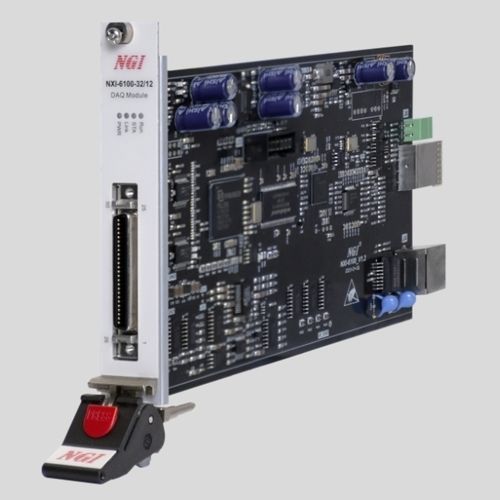

NXI-6100-32/12 is a 12-bit 32-channel analogue input& 2-channel analogue output high speed data acquisition module, it supports 1.25MS/s input sample rate and 1MS/s output sample rate. NXI-6100-32/12 comes with FIFO snubber, and supports user-defined waveform output. It can be widely used in voltage signal acquisition, data processing and analysis in multiple fields and scenarios, such as 3C consumer electronics, industrial control, and research&education. Main Features ●Analogue input: ±10V/±5V/±1V/±200mV ●32 analogue input channels can be turned into 16 channels differential inputs ●Support 2 channel analogue output ●Analogue output range: ±10V ●Input/output resolution: 12 bits ●Total input sampling rate: 1.25MS/s ●Output sampling rate 1MS/s ●Acquisition memory capacity: 16MB ●Support user-defined waveform output with 2048KB cache capacity ●Single module with single slot, applicable to NXI-F1000 chassis or independent use ●Support 12V DC power supply, LAN communication for individual control Application Fields ●Electric Signal Acquisition ●Electronic Controller Testing ●Industrial Controls ●Integrated Test Systems For more information, please visit NGI tech website
