PCIe acquisition card NXI-3201 series

digitallogic-analyzer

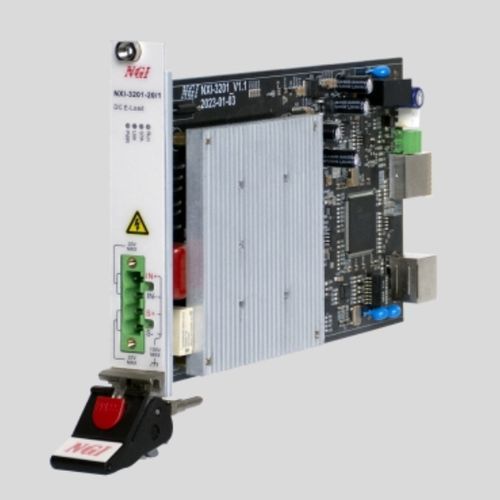

Programmable Module NXI-3201 series programmable dc electronic load card NXI-3201 series is a high-precision, highly integrated, full-featuredmodular programmable DC electronic load developed by NGI. It adoptsNXI architecture, designed for integration applications, supportsCC/CV/CP/CR/LED and other operating modes, with OCP/OVP/OPP/OTP and other multiple protection functions. NXI-3201 series can bewidely used in many fields, such as low power switching power supply,DC/DC converter, LED power supply, automotive electronics, research and education, etc. Main Feature Power range: 20W/25W/50W Voltage range: 0~20V/0~60V/0~100V Current range: 0~1A/0~5A/0~10A Dual measurement range for CC, CV, CP, CR mode Convenient for multi-channel power test with synchronous load Multiple test mode: CC/CV/CR/CP/CCD/CVD/CPD/CRD/LED Editable rise and fall slew rate for voltage and current; Adjustable circuit loop response speed OCP/OPP/short circuit simulation Sequence(SEQ) test, auto test, Von/Voff test mode With single/double slots, applicable to NXI-F1000 chassis 12VDC power supply, LAN communication for individual control Supporting SCPI/Modbus-RTU protocol and external trigger Application Fields Low power supply test,such as AC/DC power, DC/DC converter,LED power, communication power, etc. Test of automotive wiring harness,connector, fuse, relay, etc. Discharge test of lithium battery,storage battery, etc. Functions & Advantages Ultra-high integration, 4U chassis with up to 16 channels NXI-3201 DC Programmable Electronic Load Cards can be integrated with NXI-F1080 For more information，Please visit our website
