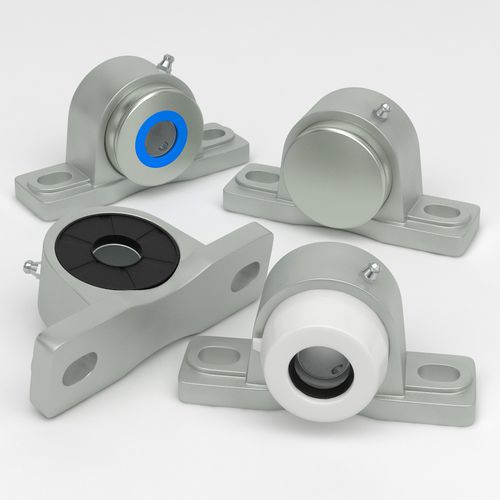

The stainless steel pillow block bearing units type SP is suitable for the food industry and other demanding environments, due to the hygienic design and minimum of maintenance.
The stainless steel bearing units are characterized by high quality and finish for both the bearing and the bearing housing.
Pillow block Unit SP in stainless steel advantages.
The bearing unit has adjustable pre-lubricated Aisi440C stainless steel ball bearing.
The bearing can be re-lubricated by stainless steel Aisi304 grease-nipple or a quick coupler.
The bearing unit can be fitted with safety cap of polypropylene or Stainless steel AISI 304.
The bearing unit can be fitted with rotary shaft seal ring (TC) with extra dust-protection lip in NBR rubber and with Stainless steel spring.
Pillow block Unit SP in stainless steel features.
Stainless steel housings AISI 304
Stainless steel bearings AISI 440C (pre-lubricated)
Stainless steel grease nipples AISI304 M6x1mm
No surface coating are required
Excellent life span
Operating temperature from -30°C to +120°C.
Cap material: Polypropylene or Stainless steel AISI 304
Oil seal material: NBR Rubber with stainless spring
The SP2xx can be supplied with open cap or closed cap.
Open Cap, suffix “OC” is added to bearing numbers. ex.: SP204OC
Closed Cap, suffix “CC” is added to bearing numbers. ex.: SP204CC
Open Cap Aisi304, suffix “OCSS” is added to bearing numbers. ex.: SP204OCSS
Closed Cap Aisi304, suffix “CCSS” is added to bearing numbers. ex.: SP204CCSS
