Stainless steel torque wrench UT-ZM series

anti-corrosionmanualsteel

Key features

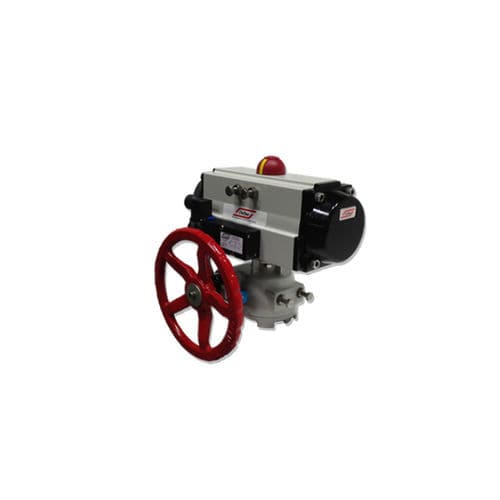

The UT-ZM is a declutchable manual gear override engineered for reliable manual actuation in industrial and chemical environments.

• Durable construction - WCB body pretreated with phosphate and finished with a powder epoxy coating; die-cast handwheels and stainless-steel declutch levers.
• Torque output - Models available with torque outputs from 1,770 to 61,995 in-lbs.
• Direct mount fit - ISO bolt patterns for direct mounting; no keyed shaft required.
• Isolation safety option - Optional built-in block-and-vent capability to reduce air resistance and simplify switching between manual and automatic control.
• Corrosion resistant - Enclosed in a dust- and weatherproof housing conforming to IP67; gears pre-lubricated for added corrosion resistance.
• Secure padlock option - Optional padlock kit allows locking to prevent unintended operation.

Documentation

• UT-ZM Manual Override Brochure (PDF)
• UT-ZM Series Dimensions and Mounting Pattern Drawings (multiple PDFs for different sizes)

Designed for safety
The UT-ZM with the Isolation Safety Option includes three ports for block and vent, simplifying and securing the transition from automatic to manual operation.

• P = Pressurized air port
• A = Actuator / solenoid port
• R = Released air port

Technical specifications

• Model / Series: UT-ZM
• Manufacturer: UniTorq
• Body material: WCB (weldable cast body)
• Surface treatment: Phosphate pretreatment with powder epoxy coating
• Handwheel: Die-cast
• Declutch lever: Stainless steel
• Torque range: 1,770 to 61,995 in-lbs (varies by model)
• Mounting: ISO bolt patterns for direct mount (no keyed shaft required)
• Protection rating: Housing conforms to IP67 (dust- and weatherproof)
• Gears: Pre-lubricated for corrosion resistance
• Safety features: Optional Isolation Safety (block and vent) and optional Padlock Kit
• Available documentation: Product brochure and multiple dimensional/drawing PDFs for UT-ZM sizes
