3-axis CNC milling machine ORIX
universalgantrywith rotary table

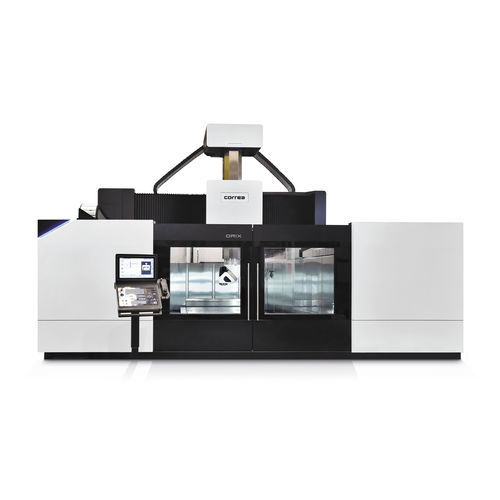

3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table - image - 2
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table - image - 3
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table - image - 4
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table - image - 5
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table - image - 6
3-axis CNC milling machine - ORIX - NICOLAS CORREA - universal / gantry / with rotary table - image - 7
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
gantry, with rotary table
Spindle mount
ISO 5, HSK-100, HSK-63
Number of tool stations
60 tools, 40 tools, 30 tools, 12 tools, 120 tools, 8 tools
Applications
for the mold industry, for the automobile industry, for the aeronautical industry, for titanium
Other characteristics
precision
X travel

Max.: 24,500 mm
(964.57 in)

Min.: 3,500 mm
(137.8 in)

Y travel

3,250 mm, 4,250 mm, 5,250 mm
(127.95 in, 167.32 in, 206.69 in)

Z travel

1,250 mm, 1,500 mm, 2,000 mm
(49.21 in, 59.06 in, 78.74 in)

Rotational speed

6,000 rpm, 12,000 rpm, 24,000 rpm
(37,699 rad.min-1, 75,398 rad.min-1, 150,796 rad.min-1)

Power

35 kW, 52 kW
(47.59 hp, 70.7 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Table load capacity

10,000 kg, 15,000 kg
(22,046 lb, 33,069 lb)

Description

The ORIX is a "Top Gantry" milling machine designed specifically for super-finishes of surfaces while maintaining good dynamics and geometric precision at the tip of the tool STANDARD EQUIPMENT Portable handwheel Air-conditioned electrical cabinet Linear guides in the X, Y and Z axes Lamp in the working area Hydraulic and cooling group Linear scales in all axes External Coolant with adjustable nozzles Internal and external air flow Guarding Tele-service VIXION 4.0 OPTIONAL EQUIPMENT Other heads Automatic head-changer Probes of measurement, tools and parts Air/Coolant cleaning gun Self cleaning filter Chip conveyors Different enclosures according to user’s needs (only in some models) Coolant through spindle 17, 36, 70 bar Zero Point Clamping System integrated in the machine
