3-axis CNC milling machine NORMA MG
universalfixed-bedwith rotary table

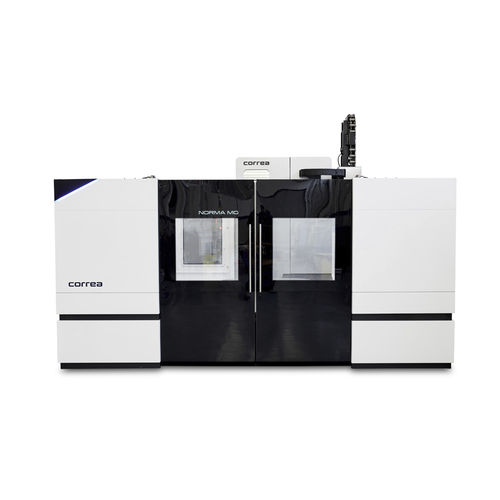

3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table
3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table
3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 2
3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 3
3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 4
3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 5
3-axis CNC milling machine - NORMA MG - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
fixed-bed, with rotary table
Spindle mount
ISO 5, HSK-100
Number of tool stations
60 tools, 40 tools, 120 tools
Other characteristics
high-precision, with integrated pallet changer
X travel

2,500 mm, 3,500 mm
(98.43 in, 137.8 in)

Y travel

1,250 mm, 1,500 mm
(49.21 in, 59.06 in)

Z travel

1,500 mm, 2,000 mm
(59.06 in, 78.74 in)

Rotational speed

4,000 rpm, 6,000 rpm, 10,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)

Power

24 kW, 30 kW, 33 kW
(32.63 hp, 40.79 hp, 44.87 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Table load capacity

Min.: 7 t
(8 us ton)

Max.: 10 t
(11 us ton)

Weight

620 kg, 840 kg, 990 kg
(1,366.87 lb, 1,851.88 lb, 2,182.58 lb)

Description

Bed type milling machine NORMA MG with lateral ram offers robustness thanks to its ram guiding system in L. This machine has different options of rotary and turning table which provides great flexibility to perform several machining operations. The milling machine has 4+2 axes to offer high flexibility maintaining robustness and precision of Correa indexed milling heads with rotation every 0.02º, patented by Nicolás Correa. STANDARD EQUIPMENT Numerical control Heidenhain or Siemens Portable handwheel Air-conditioned electrical cabinet Linear guides in the X, Y and Z axes Lamp in the working area Gearbox Hydraulic group Linear scales in all axes External Coolant with adjustable nozzles in the head Perimeter fence Direct Tele-service VIXION 4.0 OPTIONAL EQUIPMENT Other heads Probes of measurement, tools and parts Pick up station for 8 tools Air or oil cleaning gun with motor pump Centrifugal filter in cutting fluid tank Chip conveyors Integral guarding Basic guarding Coolant through spindle to high and medium pressure Integrated turning plate Automatic pallet changer Integrated turning table Automatic pallet changer

VIDEO
