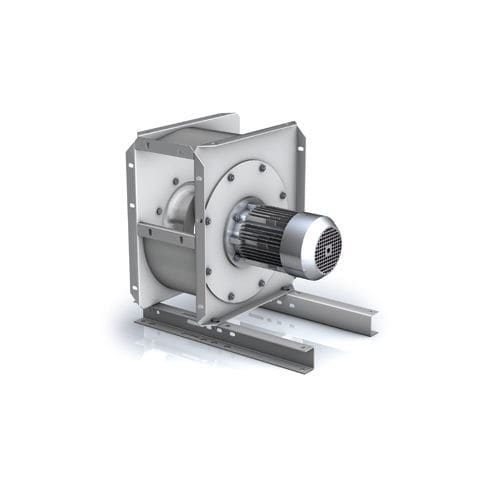

Centrifugal fan P2M

steelstainless steelindustrial

Scroll casing with direct drive without a coupling, single inlet Product Description Robust industrial versions Long service life, easy to maintain High efficiency, quiet operation Custom solutions at series production prices Quality is certified and assured in accordance with ISO 9001 Technical data measured as specified in DIN 24163 Tolerance class 2 in accordance with DIN 24166 3D drawings for planning Product Benefits Spiral housing Robust welded construction, Housing positions in 90° increments, Individual install position, Different levels of tightness, Suction-side connection DIN  24154-R4, Pressure-side connection DIN  24158-R4 Centrifugal impeller Impeller diameter 280 to 900  mm, Backward-curved blades, Welded, Dust-repellent Motor Standard motor, B5 mounting, Maximum motor size 200 Materials Coated steel, Hot-dip galvanised, Stainless steel 1.4307 Stainless steel 1.4571 on request Medium Media temperatures from -20 °C up to +300 °C ATEX Category 2 and 3; gas and dust
