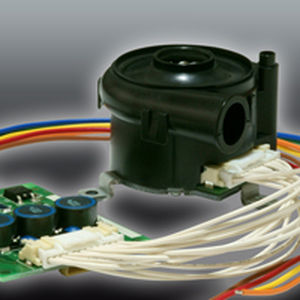

Air blower TF037C-2100-Pcentrifugalsingle-stagemicro
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Other characteristics
- micro
- Flow
Max.: 100 l/min
(26.42 us gal/min)Min.: 10 l/min
(2.64 us gal/min)- Operating pressure
Max.: 4,500 Pa
(0.653 psi)Min.: 0 Pa
(0 psi)- Nominal power
Max.: 29 W
(0.039 hp)Min.: 0 W
(0 hp)
Description
1.Scope
This specification applies to Blower Kit:TF037C-2100-P (hereinafter referred to as "the PRODUCT"),
a product of NIDEC COPAL ELECTRONICS CORP. (hereinafter referred to as "NCEL").
Contents of the kit are Micro Blower:TF037C-2100-F, Driver board, Harness (2 types) and
Instruction manual.
2.Specification
(Notel) Unless otherwise specified, the environmental conditions are 23‘C±5'C, normal humidity, and
atmospheric pressure range 90 to 106kPa.
(Note2) Measuring conditions :
Supply voltage = DC24V, measurement equipment = NCEL's standard equipment
(Note3) This specification represents the characteristics at the time of product shipment. Changes in
characteristics over time are not covered by this specification.
