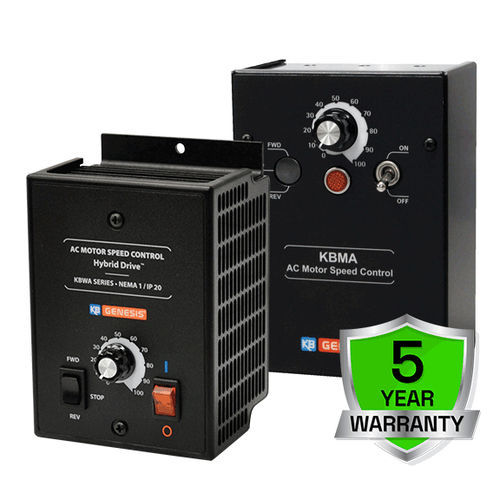

Variable-frequency AC drive KB series
three-phaseanalogfor machines

Variable-frequency AC drive - KB series - NIDEC DRIVES - three-phase / analog / for machines
Variable-frequency AC drive - KB series - NIDEC DRIVES - three-phase / analog / for machines
Variable-frequency AC drive - KB series - NIDEC DRIVES - three-phase / analog / for machines - image - 2
Variable-frequency AC drive - KB series - NIDEC DRIVES - three-phase / analog / for machines - image - 3
Add to favorites
Compare this product
Go to the NIDEC DRIVES website for more information

Characteristics

Type
three-phase, analog
Applications
for machines, for pump, for induction motors, HVAC, for elevators, for brushless motors, for the textile industry, for machine tools, for elevators, air conditioner, for permanent magnet motors
Protection class
IP20, NEMA 1, IP50
Other characteristics
variable-frequency
Power

Max.: 0.37 kW

Min.: 0.19 kW

Intensity

Max.: 2.4 A

Min.: 1.5 A

Description

KB’s AC drives provide variable speed for 3ph AC Induction motors from 1/8 through 10 horsepower. For OEM applications, custom drives are also available for Brushless DC, PMSM, PSC, and Shaded Pole motors. They are available in 115, 208/230, and 400/460 VAC - 50/60 Hz with 1ph and 3ph input. All KB’s AC Drives contain Sensorless Flux Vector Compensation with Static-Auto-Tune. This provides excellent speed regulation from zero to full load over a wide frequency range. These drives provide auto energy savings at light loads and smooth motor torque operation. A variety of optional accessories are also available to meet the most demanding applications. ...For more information on this product please see the catalogue below or contact us

Catalogs

No catalogs are available for this product.

See all of NIDEC DRIVES‘s catalogs
Go to the NIDEC DRIVES website for more information
