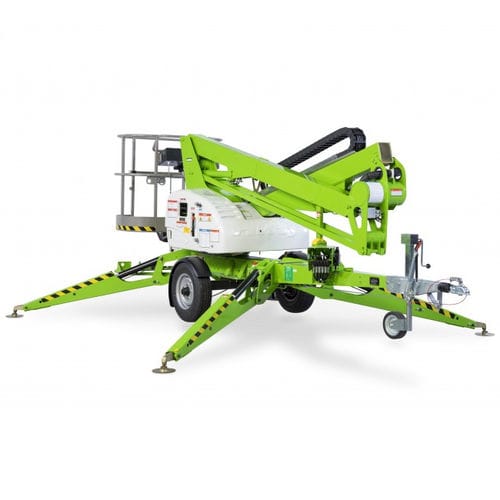

Trailer-mounted articulated boom lift Nifty 150T

dieselbattery-poweredhydraulic

Developed specifically to maximise outreach, the Nifty 150T trailer mount delivers an unrivalled working envelope, especially at low levels where outreach is needed most. The Nifty 150T trailer mount offers an up-and-over clearance of more than 5.6m allowing it to reach easily over larger obstacles such as walls and buildings. Compact dimensions coupled with hydraulically operated outriggers make manoeuvring and setting up the Nifty 150T trailer mount quick and simple, while its 1.4m wide platform provides the operator plenty of room in which to work. Fully proportional hydraulic controls and a spacious platform make the Nifty 150T trailer mount simple to operate with both speed and accuracy. The Nifty 150T trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning. Features Telescopic Upper Boom Greater accuracy when positioning platform Bi-Energy Available Optimising utilisation Hydraulic Outriggers For quick & easy setup Fully Proportional Hydraulic Controls Simple, reliable & easy to maintain Traction Drive Option Improved manoeuvrability on site Specifications Working Height (A) 14.7m 48ft 6in Working Outreach (C) 7.55m 25ft Platform Height (B) 12.7m 42ft Machine Width (F) 1.6m 5ft 3in Machine Height (D) 2m 6ft 7in Machine Length (J) 5.55m 18ft 3in Working Width (G) 3.8m 12ft 6in Minimum Weight 1775kg 3915lbs Safe Working Load 225kg 500lbs Cage Width 1.4m 4ft 7in Cage Depth 0.65m 2ft 4in Outrigger Type Hydraulic Traction Drive Available Power Options Mains only Battery only Petrol or Diesel Only Bi-Energy (Engine & Battery)
