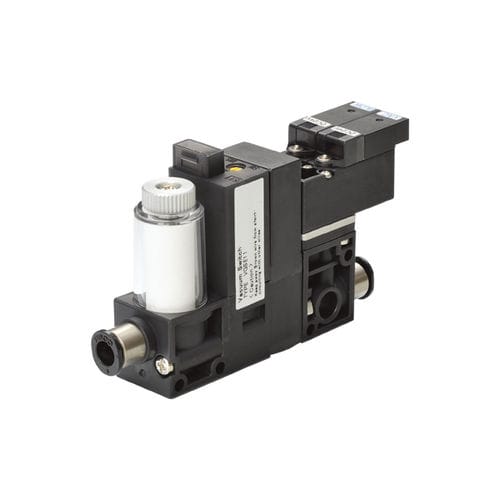

Modular vacuum ejector VG series
single-stageindustrialfor robots

modular vacuum ejector
modular vacuum ejector
modular vacuum ejector
Add to favorites
Compare this product

Go to the NIHON PISCO CO., Ltd. website for more information

Characteristics

Number of stages
single-stage
Applications
industrial, for robots, for automobiles, for machines, for medical applications, for conveyors, for the plastics industry, for food products, for pneumatic conveying
Other characteristics
modular, pneumatic, with push-in fitting
Ultimate vacuum

Max.: -660 mbar
(-9.57 psi)

Min.: -930 mbar
(-13.49 psi)

Flow rate

Max.: 34 l/min
(8.98 us gal/min)

Min.: 7 l/min
(1.85 us gal/min)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 5 °C
(41 °F)

Description

Vacuum generator, air supply/blow-off solenoid valve and vacuum switch modules can be combined depending on vacuum system Vacuum generator, air supply/blow-off solenoid valve and vacuum switch modules can be combined depending on vacuum system Three types of vacuum switches are provided. 1 switch output +1analog output type, 2 switch outputs type and 1 analog output economial type are provided.

Catalogs

VG series
VG series
21 Pages
Go to the NIHON PISCO CO., Ltd. website for more information
