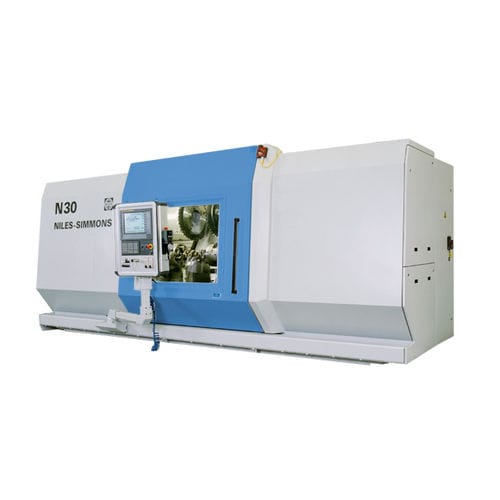

CNC turning center N30 TB
2-axisfor crankshaftsuniversal

CNC turning center
CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Applications
for crankshafts
Other characteristics
universal, 1-spindle, powerful
Diameter

780 mm
(30.71 in)

Spindle speed

3,000 rpm
(18,849.556 rad.min-1)

Rapids on X

18,000 mm/min
(12 in/s)

Rapids on Z

30,000 mm/min
(20 in/s)

Description

The NILES-SIMMONS Crankshaft Turn-Broaching Machines N20 TB and N30 TB are based on the modular building-block system of the N‑series. Two symmetrically arranged tool spindles with powerful and electronically synchronized spindle drives and two mirror imaged broaching units with highly dynamic rotary axes to locate the tool discs ensure efficient turning and turn-broaching operations on crankshaft bearings and other concentric features of crankshafts. The use of maximum 2x48 tool pockets to locate the reversible cutting inserts ensures high flexibility and long tool life due to the use of sister tools. Added value: 2 symmetrical, temperature controlled motor spindle drives with excellent power and torque parameters Rapid positioning of cutting tools by means of highly dynamic rotary axes Simultaneous operation of both tool disks with independent feed rates Adaptable clamping solutions with shaft chucks to machine flange and post in one setup Semi-automatic tool clamping, automatic transfer of pre-set tool data via ID-chip
