Characteristics
- Motor type
- DC
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W
- Voltage
- 12 V
- Torque
- 50 - 100 Nm
- Product applications
- car
Description

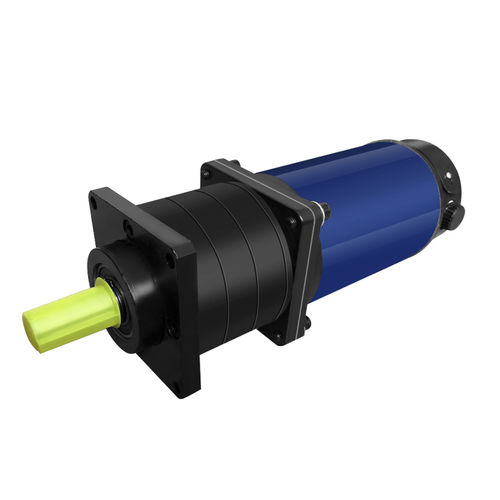

12V 90MM DC Brush Planetary Gear Motor
Category: Custom DC Brush Motor
Voltage: 12V DC
Power: 150W
Dimension: Φ90×277.5mm
Noise: ≤60db
Product Description
Products name 12V 90MM DC Brush Planetary Gear Motor
Dimension Φ90×277.5mm
Noise ≤60db
Iput voltage 12V DC
Maximum output power 150W
Maximum efficiency 75%
Speed at maximum efficiency 24r/min
Torque at maximum efficiency 60Nm
Electrical connection S1
Operation temperature B
Protection grade IPOO
Use AGV Car
