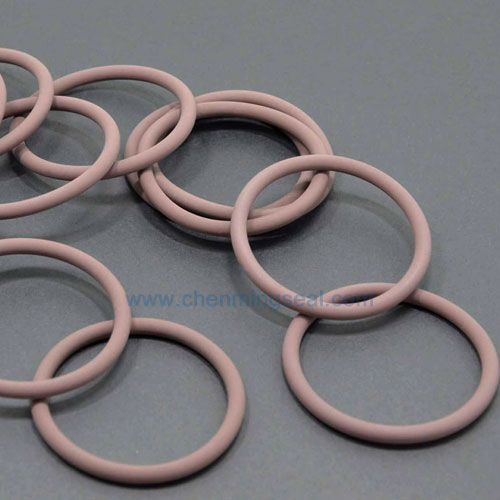

- O-ring seal
- Ningbo Chenming Seals Manufacturing Co., Ltd.
O-ring seal rubbercircularstatic
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Material
- rubber
- Configuration
- circular
- Other characteristics
- static
- Temperature limit
Max.: 275 °C
(527 °F)Min.: -60 °C
(-76 °F)- Pressure limit
Max.: 400,000,000 Pa
(58,015.1 psi)Min.: 0 Pa
(0 psi)- Diameter
Max.: 3,000 mm
(118.11 in)Min.: 1 mm
(0.039 in)
Description
-for static and rotary sealing-excellent scraping perfomance•low friction, wear résistance, stable dimension-can stand rapid temperatrue change•not pollute foodstufs. medicines and médical fluids-unlimited srorage life
FKM/FPM O Rings:
Compound - AType(66%). B Type(69%). G Type(70%). Viton ETP. Viton TEEJP. 3M... - - - -
Pressure - Température - Speed - Hardness - Cotors - Media
vacuum - 40 Mpa static to 400 Mpa - static: -60 C-275C rotary: -15 C- 200 C - 0.5m/s - HS A50-90 - black white brown green yellow blue... - gasoline. diesel fuel oil. toluene. oxalic acid, methyl alcohol Ail fluids. gases & Chemicals
Design Feature - - - for static and rotary sealing - - excellent scraping perfomance • - low friction, wear résistance, stable dimension - - can stand rapid temperatrue change - - not pollute foodstufs. medicines and medical fluids • - unlimited srorage life - - - -
Applications: - automobile fork shaft. ongine vavle shaft. pump shaft..
