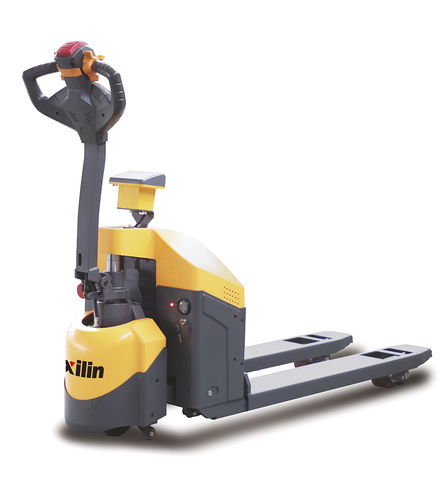

Hand pallet truck CBD15W-E

electricmultifunctionloading

The Mini type with same size as hand pallet truck widely used in narrow aisle workshop, supermarket & cargo containers. Advantages: ●Adopting floating balance wheel can prevent the side swing of the truck when travelling. Travel smoothly and no swing; great anti-vibration. ●The whole balance wheel can be removed, easy to maintain. ●The rock arm mechanism integral structure which improves the structure strength effectively, meanwhile, share and adjust the even force from the fork. Reduce the obvious deflection in fork height after a long use and when loading. ●The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water、dust and greasy dirt gluing on the motor effectively and improve working condition of the motor. ●The truck is equipped with a height limit switch. Cut off the lifting circuit when lifting height approaches the highest point to disconnect the power of the hydraulic power unit to prevent the noise from the spillover of the hydraulic station and save the energy caused by spillover. Model - - CBD15W -E Load capacity - Q(kg) - 1500 Load centre distance - c(mm) - 600 Fork height,lowered - h13(mm) - 8 5 / 7 5 Tyre size,front - mm - Φ195×70 Tyre size,rear (single) - mm - Φ80×93 / Φ74×93 Tyre size,rear (double) - mm - Φ80×70 / Φ74×70 Wheels, number front rear (x = driven wheels) - - 1x-2/4 Max. lift height - h3(mm) - 200/190 Height of tiller in drive position min./max - h14(mm) - 700/1250 Overall length - I1 (mm) - 1654/1724 Length to face of forks - l2(mm) - 504 Overall width - b1(mm) - 685/562 Fork dimensions - s/e/l(mm) - 53/160/1150(1220) Width overall forks - b5(mm) - 520/550/685
