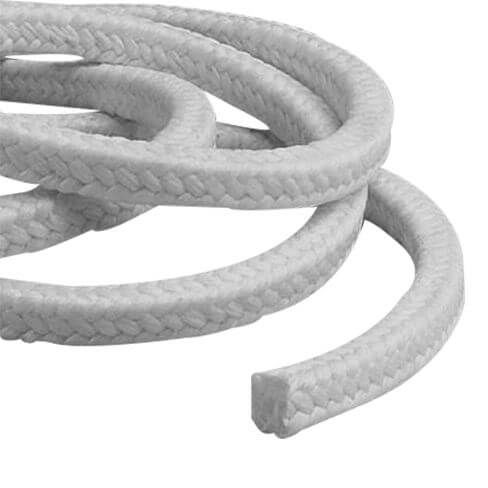

Braided PTFE packing C104

graphitefor pumpsfor valves

PTFE Filament Packing SUNWELL P103 • Braided from sintered and high stretched PTFE multifilament yarns. Within PTFE impregnation. Good resistance to compression and extrusion, high structural and cross-sectional density. Description PTFE Filament Packing made from synthetic composite PTFE yarn, the yarn is sintered, highly stretched. The packing is then re-impregnated with mix of PTFE emulsion during braiding operation. Good resistance to compression and to extrusion, high structural and cross-sectional density. P103R PTFE Filament packing with Silicone Core High red elastic silicone rubber core can absorb vibration to control leakage. Typical Application >Universal packing suitable for valves, pumps and agitators in most mediums >Especially suited for high pressure valves, plunger pumps, agitators, mixer etc. And where contamination is not permitted. Prime Features >Clean, non-contaminating and graphite free >Long maintenance free service life > Minimal shaft wear and leakage > Superior performance > Lower frictional factor Material : 100% Filament PTFE yarn (with Silicone oil, Silicone core) Temperature Range : -150 up to +260 oC Process : Rotating : 20 bar Reciprocating : 150 bar Static : 250 bar Shaft Speed : 10m/s PH : 0~14 Density : 1.75g/cm3
