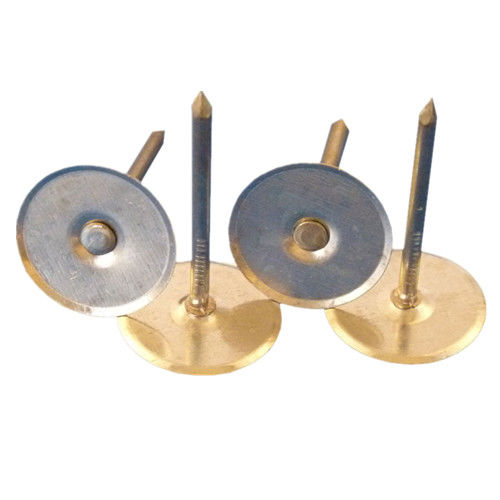

The Stainless Steel Cup Head Pin is a mild steel fabricated part made up of a weld pin and a staked-on speed clip, or retaining washer. While some variations of material are available, the most popular style Cup Head Weld Pin is a mild steel weld nail with a galvanized-coated mild steel retaining washer.
This product is usually applied with a capacitor discharge stud welder such as the Cutlass Pinto Pin/Stud Welder. Cup Head pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets.
Product Part Number Diameter Length Width
GA Inch Inch
Cup Head Pin BST-CHP-1215 12 min 3/8 1 1/2
Mini Cup Head Pin BST-CHP-12 12 min 3/8 1 3/16
