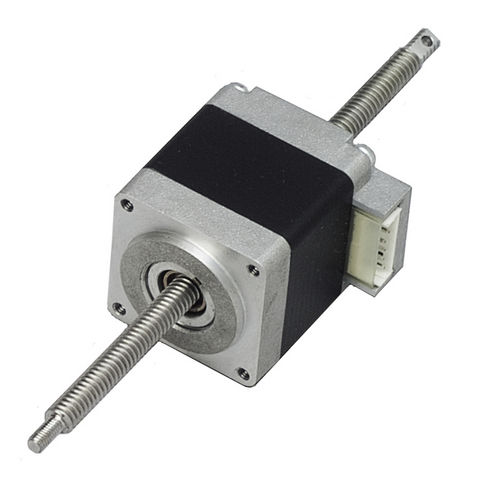

The PJPL series offers motors with a 28mm motor frame size (PJPL28) or a 42mm frame size (PJPL42). Both motors feature 0.005mm resolution, 200 steps per revolution, a standard maximum stroke length of 40mm, and a dielectric strength of 500V (1 min). Both motors have 2-2 phase excitation modes.
The PJPL28 series features a rated voltage of 2.66V, 0.95A of rated current, a resistance of 2.8 ohms, and an inductance of 1mH. The PJPL42 series offers 2.80V of rated voltage, a rated current of 1.2A, a resistance of 2.3 ohms, and an inductance of 1.5mH.
Nippon Pulses hybrid linear stepper motors are suitable for medical devices, microtiter tables, fluid dispensers, semiconductor wafer handling machines, optical systems, and data storage machines.
