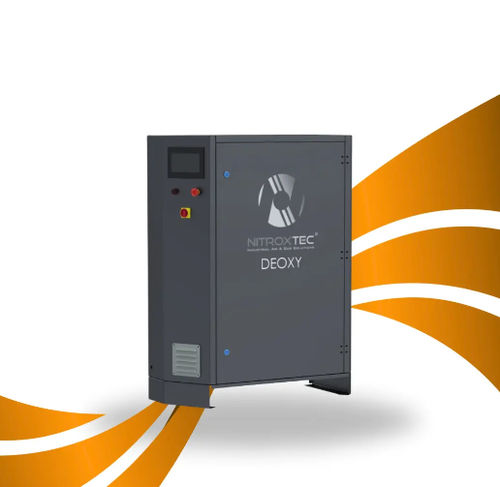

Nitrogen purification system

The Nitroxtec Deoxy (Nitrogen Purifi cation) unit provides a defi nitive solution to the need for high nitrogen purity. Thanks to this system, nitrogen gas of much higher purity such as 99.9999% (6.0) N2 (1 ppm O2) can be obtained and more economical nitrogen gas can be produced compared to standard PSA nitrogen production. Deoxy device is produced from a nitrogen generator with a certain ratio of hydrogen gas. It increases the purity of the existing nitrogen gas by mixing incoming nitrogen gas of 99.9% purity DESCRIPTION NITROXTEC FOR EFFICIENT AND SUSTAINABLE PRODUCTION Deoxy Nitrogen purification units are devices used to separate nitrogen in the air from oxygen, carbon dioxide and other gases. The purification process is done by taking advantage of the differences between the molecular sizes and physical properties of the gases in the air. In the catalyst unit, palladium-coated alumina binds externally introduced hydrogen gas atoms. The remaining (1,000 ppm) oxygen gas molecules in the 99.9 purity nitrogen gas produced in the PSA generator combine with hydrogen gas on palladium alumina and turn into water, thus raising the nitrogen gas to an ultra-pure level. The water in ultra-pure nitrogen gas is dried with the help of a special desiccant dryer, and ultra-high purity 99.9999 (1ppm O2) nitrogen gas, purified from oxygen and moisture, is transferred to the systems. A special automation system is used to ensure the most efficient and minimal consumption of hydrogen gas used in the catalys With Deoxy Nitrogen Purification Unit Less Energy, More Efficiency THE MAIN ADVANTAGES OF DEOXY NITROGEN PURIFICATION UNITS ARE High purity nitrogen production Low operating cost
