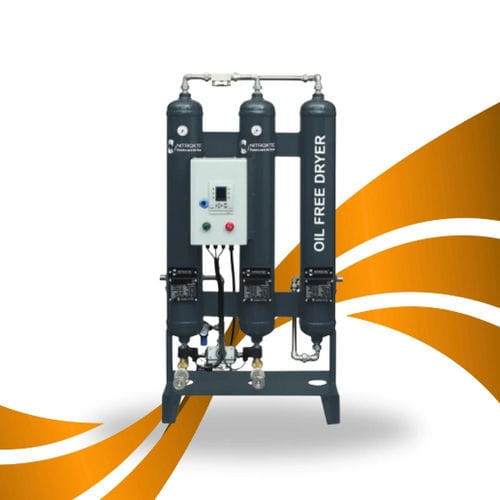

Desiccant compressed air dryer
three-stagecompacthigh-quality

Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 2
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 3
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 4
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 5
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 6
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 7
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 8
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 9
Desiccant compressed air dryer - Nitroxtec Industrial - three-stage / compact / high-quality - image - 10
Add to favorites
Compare this product

Characteristics

Technology
desiccant
Number of stages
three-stage
Other characteristics
compact, high-quality
Capacity

Min.: 48 m³/h
(1,695.1 ft³/h)

Max.: 1,250 m³/h
(44,143.33 ft³/h)

Working pressure

20 bar
(290.08 psi)

Motor power

50 W
(0.07 hp)

Weight

Min.: 55 kg
(121.3 lb)

Max.: 1,040 kg
(2,292.8 lb)

Dew point

-70 °C, -40 °C, -20 °C
(-94 °F, -40 °F, -4 °F)

Description

NitroxTec oil-free chemical air dryers are designed for applications requiring extremely dry compressed air and oil-free air. The chemical dryer and activated carbon tower complement each other, resulting in high-quality oil-free dry air. NitroxTec's activated carbon integrated chemical air dryers are equipped with special valves and high-quality moisture and grease traps. Clean Air, Oil-Free Production: Excellent Results with Oil-Free Chemical Air Dryers Oil Free Desiccant Air Dryers are systems used to remove oil, moisture, and other contaminants from compressed air. These systems are utilized in sensitive production processes such as food, pharmaceuticals, electronics, and textiles. Advantages of Oil Free Desiccant Air Dryers: High Efficiency: Oil Free Desiccant Air Dryers operate with higher efficiency compared to traditional refrigerated dryers. This results in lower energy consumption and reduced operating costs. Oil Removal: Oil Free Desiccant Air Dryers effectively remove oil from compressed air, preventing oil contamination in sensitive production processes. Wide Operating Temperature Range: Oil Free Desiccant Air Dryers can be used in temperatures ranging from -40°C to +200°C, making them suitable for different climatic conditions and various applications. Low Energy Consumption: Oil Free Desiccant Air Dryers consume less energy compared to traditional refrigerated dryers, offering an eco-friendly solution. Ease of Maintenance: Oil Free Desiccant Air Dryers require less maintenance compared to traditional refrigerated dryers.
