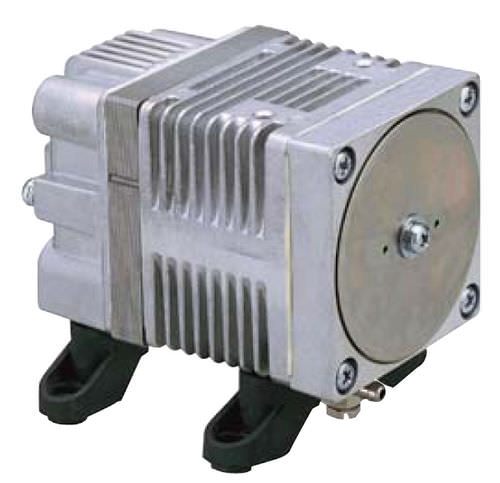

Linear piston compressor 0.8 l/min | AC 0110
airelectrically-poweredAC

linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
Add to favorites
Compare this product


Characteristics

Technology
linear piston
Type
air
Power source
electrically-powered, AC, motorless
Portability
stationary
Lubrication
oil-free
Application domain
industrial, for medical applications
Applications
laboratory, process, for OEM, for pharmaceutical applications, for refrigeration technology, laser
Other characteristics
low-noise, compact, rugged, energy-saving, low-pressure, light, medium-pressure, electric, small, positive pressure
Pressure

Max.: 1.2 bar (17.4 psi)

Min.: 0 bar (0 psi)

Flow

0.8 l/min (0.21 us gal/min)

Power

15 W (0.02 hp)

Description

The AC 0110 is an AC pump manufactured by Nitto. It can operate continuously on a 230V or 120V rated voltage for 3.000h. Weighing at 0.7kg, it is capable of delivering a maximum pressure of 1.2bar and a rated airflow of 0.8l/min. In addition, it is equipped with a 6mm O.D. hose nipple outlet and a class E coil insulation.
