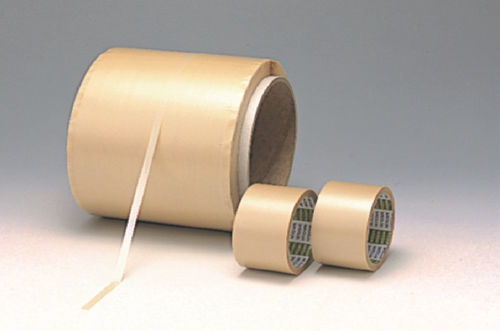

Insulating adhesive tape No.320A

acrylichigh temperature-resistantnarrow width

Overview
For applications requiring heat resistance such as fixing elements in aluminum electrolytic chip capacitors. The tape features a PPS (Polyphenylene sulfide) film backing with superior heat resistance and is used for insulating electrodes of lithium-ion secondary batteries and for fixing elements in aluminum electrolytic chip capacitors that require heat resistance.

Features

• Superior electrical insulation.
• High dimensional stability.
• Heat resistant (normal service temperature: 160°C).
• Narrow-width processing available.
• Available in long lengths (standard 20 m).

Structure
Backing: PPS (Polyphenylene sulfide) film backing. Adhesive: Acrylic.

Properties
Product name
Polyphenylene sulfide adhesive tape

Product No.
No.320A#16 ; No.320A

Adhesive
Acrylic

Backing thickness/Total thickness [mm]
0.016 / 0.035 ; 0.025 / 0.053

Standard length [m]
20

Color
Cream

Peeling strength [N/10mm]
3.0 ; 3.3

Tensile strength [N/10mm]
34 ; 55

Elongation [%]
64 ; 60

Breakdown voltage [kV]
3.7 ; 5.5

Electrolytic corrosion factor
1.00

Applications

• Fixing elements of aluminum electrolytic capacitors.
• Insulation of electrodes in lithium-ion secondary batteries.

Technical specifications

• Product name: Polyphenylene sulfide adhesive tape
• Model / Product No.: No.320A ; No.320A#16
• Adhesive: Acrylic
• Backing thickness / Total thickness (mm): 0.016 / 0.035 and 0.025 / 0.053
• Standard length: 20 m
• Color: Cream
• Peeling strength: 3.0 N/10mm and 3.3 N/10mm
• Tensile strength: 34 N/10mm and 55 N/10mm
• Elongation: 64% and 60%
• Breakdown voltage: 3.7 kV and 5.5 kV
• Electrolytic corrosion factor: 1.00
• Normal service temperature: 160°C
• Remarks: The above values are sample observed values, not guaranteed performance.
