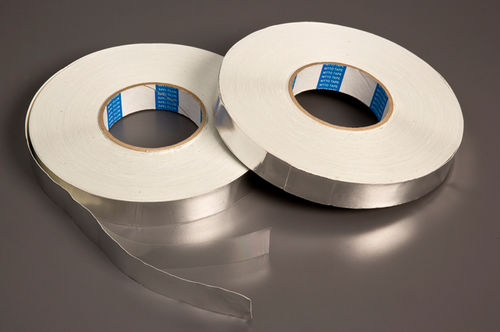

Vibration damping adhesive tape P-12L

sealingmaskingaluminum

Overview P-12L is an aluminum foil tape laminated with cotton cloth backing and supplied with a release liner. Engineered for masking, flame protection, sealing and repair in aerospace applications such as aircraft fuselage and interior panels. Also used across transportation, electronics and white goods industries. The liner facilitates die-cutting and unwinding for wide-width rolls. Non-liner version available: P-12.

Key features

• Combines protective and sealing properties of metallic materials with the handling and application characteristics of pressure-sensitive tape.
• Cloth backing provides cushioning, useful for sound and vibration damping applications.
• Solvent resistant.
• Waterproof and weather resistant.

Structure Backing: dead soft aluminum foil laminated to cotton cloth. Product supplied with a release liner to assist processing and die-cutting.

Properties (key material information) BACKING: Dead soft aluminum foil & cotton cloth
ADHESIVE: Natural rubber / resin
COLOR: Aluminum
AIRBUS: ABS 5604B
BOEING: BAC 5514

Physical specifications TOTAL TAPE THICKNESS: 15 mil / 0.381 mm
ADHESION TO STEEL: 115 oz/in / 12.5 N/10mm
TENSILE STRENGTH: 50 lbs/in / 87.4 N/10mm
ELONGATION: 10%

Downloads Datasheet and SDS available for this product.

Technical specifications

• Model: P-12L (liner version); P-12 (non-liner).
• Intended markets: aerospace (aircraft fuselage and interior panels), transportation, electronics, white goods.
• Primary functions: masking, flame protection, sealing, repair, stripping operations.
• Backing: dead soft aluminum foil laminated with cotton cloth (cloth backing provides cushioning for vibration and sound damping).
• Adhesive: natural rubber / resin.
• Color: aluminum.
• Total tape thickness: 15 mil (0.381 mm).
• Adhesion to steel: 115 oz/in (12.5 N/10 mm).
• Tensile strength: 50 lbs/in (87.4 N/10 mm).
• Elongation: 10%.
• Resistance: solvent resistant, waterproof and weather resistant.
• Supply form: linered rolls for ease of die-cutting and unwinding (wide width rolls).
