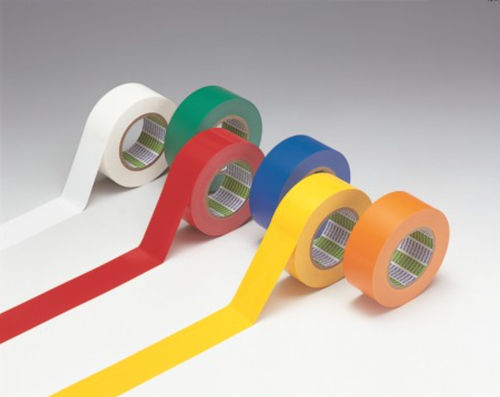

Marking adhesive tape E series

rubberfor marking

Overview
Environmentally friendly indoor floor marking tape for flat surfaces, manufactured from a polyolefin film with organic pigment and an adhesive formulated without organic solvents. Available in five variants for different use cases.

Structure
Polyolefin film (printed/pigmented) combined with a solvent-free adhesive. (Construction illustration available on the product sheet.)

Properties
Product codes: E-SD / E-OC / E-CR / E-A / E-P
Thickness [mm]: 0.16 / 0.16 / 0.16 / 0.16 / 0.21
Adhesion strength (180º peel on stainless steel) [N/20 mm]: 24.00 / 24.00 / 24.00 / 24.00 / 15.00
Tensile strength [N/20 mm]: 100 / 100 / 100 / 100 / 135
Elongation [%]: 1400 / 1400 / 1400 / 1400 / 160

Standard specifications

• E-SD
  • Thickness: 0.16 mm
  • Formats: 50×50 (m) — Qty 18 rolls — Standard colors: green, yellow, red, blue, white, orange
  • 75×50 — Qty 12 rolls — Standard colors: yellow, white — Colors on request: green, red, blue, orange
  • 100×50 — Qty 9 rolls — Standard colors: yellow, white — Colors on request: green, red, blue, orange
• E-OC
  • Thickness: 0.16 mm
  • Formats: 50×50 — Qty 18 rolls — Standard colors: yellow, white — Colors on request: green, red, blue, orange
  • 75×50 — Qty 12 rolls — Standard colors: yellow, white — Colors on request: green, red, blue, orange
  • 100×50 — Qty 9 rolls — Standard colors: yellow, white — Colors on request: green, red, blue, orange
• E-CR
  • Thickness: 0.16 mm
  • Formats: 50×50 — Qty 18 rolls — Standard colors: (not specified)
  • 75×50 — Qty 12 rolls — Standard colors: (not specified)
  • 100×50 — Qty 9 rolls — Standard colors: (not specified)
  • Available colors: green, yellow, red, blue, white, orange
• E-A
  • Thickness: 0.16 mm
  • Formats: 50×50 — Qty 18 rolls — Standard colors: green, yellow, red, blue, white
  • 75×50 — Qty 12 rolls — Standard colors: green, yellow, white — Colors on request: red, blue
  • 100×50 — Qty 9 rolls — Standard colors: green, yellow, white — Colors on request: red, blue
• E-P
  • Thickness: 0.21 mm
  • Formats: 50×50 — Qty 18 rolls — Standard colors: yellow, white
  • 75×50 — Qty 12 rolls — Standard colors: yellow, white
  • 100×50 — Qty 9 rolls — Standard colors: yellow, white

Applications
Intended for floor marking on flat indoor surfaces such as factories, offices, gyms and retail spaces. Suitable for aisle marking, zonal demarcation and indoor safety signage.

Characteristics / technical specifications

• Series: E Series (E-SD, E-OC, E-CR, E-A, E-P)
• Backing: polyolefin film with organic pigment
• Free of lead, PVC and harmful heavy metals
• Adhesive: solvent-free formulation (no organic solvents)
• Thicknesses: 0.16 mm (most types), 0.21 mm (E-P)
• Adhesion: typically 24 N/20 mm (depending on type); E-P typically 15 N/20 mm
• Tensile strength: typically 100 N/20 mm (depending on type); E-P 135 N/20 mm
• Elongation: typically 1400% (depending on type); E-P 160%
• Standard formats: widths 50, 75, 100 mm × length 50 m (variants by type)
• Standard colors: green, yellow, red, blue, white, orange (depending on type and format)
• For other sizes or custom color orders, please request availability.
