Barrier sheet BREATHRON™

multilayerlaminatedpolyamide

Overview
Water and wind are blocked while air and moisture vapor pass through. BREATHRON™ is a microporous breathable film that combines air permeability and moisture-vapor release with water- and wind-resistance by a complex distribution of micron-scale pores. Breathability and resistance levels can be adjusted on request for specific applications such as disposable adhesive heating pads that require controlled ventilation and dimensional stability.

Features

• Porous film containing hundreds of microscopic holes not visible to the naked eye.
• Allows air and moisture vapor transmission while preventing liquid water penetration.

Structure

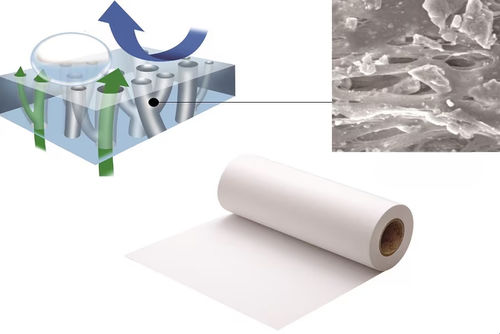

Microporous film laminated to nonwoven backing materials depending on the variant; pore size distribution at micron scale provides breathability with water and wind resistance.

Properties
Standard Size
Product width (mm) | Product length (m)
315, 420 | 500, 1000

Product specifications
Product name | Thickness (mm) | Air resistance (Sec/100cc) | Moisture-vapor permeability (g/m2·day) | Water bearing pressure (kPa) | Composite material (nonwoven fabric)
BRN100E1 | 0.25 | 30000 | 400 | greater than 80 | PET nonwoven fabric (30 g/m2)
BRN-A120E1 | 0.25 | 28000 | 410 | greater than 80 | PET nonwoven fabric (30 g/m2)
BRN-1860 | 0.35 | 4500 | 860 | greater than 80 | Nylon nonwoven fabric (40 g/m2)
BRN3000E1 | 0.25 | 400 | 4500 | greater than 80 | PET nonwoven fabric (30 g/m2)
BRN-9000EB | 0.27 | 3900 | 1100 | greater than 80 | PET nonwoven fabric (black) (50 g/m2)

Applications

• Disposable adhesive heating pads that require ventilation and stability.
• Dehumidification agents, air fresheners and related consumer or industrial products.

Precautions

• Store away from direct sunlight, in a well-ventilated area at room temperature and normal humidity.
• Confirm compatibility with your product and application conditions before use to ensure safety and performance.
• Long-term use under severe conditions may lead to deterioration; use within the guarantee period after delivery.
• Data provided are measured under specific conditions and are not guaranteed in every circumstance.
• Product quality, performance and functionality depend on actual use conditions.
• Manufacture of this product may be suspended or specifications changed without prior notice.
• Intellectual property related to this text is held by Nitto Lifetec Corporation. Unauthorized copying or reproduction is prohibited.

Technical characteristics / specifications

• Breathability: air and moisture-vapor transmission via micron-scale pores while preventing liquid water ingress.
• Moisture-vapor permeability examples: approximately 400 to 4500 g/m2·day depending on variant.
• Air resistance examples: approximately 400 to 30,000 Sec/100cc depending on variant.
• Water bearing pressure: greater than 80 kPa for listed variants.
• Standard widths: 315 mm, 420 mm; standard lengths: 500 m, 1000 m.
• Available variants: BRN100E1, BRN-A120E1, BRN-1860, BRN3000E1, BRN-9000EB.
• Composite supports: PET nonwoven (30 g/m2), nylon nonwoven (40 g/m2), PET nonwoven (black) (50 g/m2) depending on variant.
