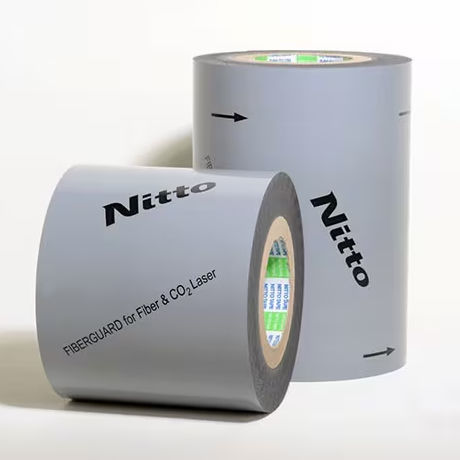

Protection adhesive tape FIBERGUARD® S509H10P

polyethylenerubberblack

Product overview
Nitto FIBERGUARD® 509H10P is a printed black/grey co‑extruded LDPE surface protection tape designed to protect metal substrates during fiber and CO₂ laser cutting. The backing is combined with a solvent‑based natural rubber pressure‑sensitive adhesive formulated to minimize bubble formation and perform on high‑speed, high‑performance laser systems.

Key features

• Prevention of bubble formation during laser cutting
• High adhesion to metal substrates
• No pre‑cutting required
• Functional print with directional arrows and Nitto marking
• High mechanical strength; recyclable film

Structure
Printed co‑extruded LDPE film (black and grey) with a special release treatment on the surface and a solvent‑based natural rubber adhesive on the reverse side.

Properties

• Backing material: Black and grey co‑extruded LDPE film
• Adhesive: Solvent‑based natural rubber (pressure‑sensitive)
• Color: Grey backing with black functional print (arrows, Nitto mark)
• Film thickness: 0.10 mm (100 µm)
• Elongation: 350 %
• Breaking strength: 36 N/20 mm (≈164.46 oz/in)
• 180° peel adhesion (SUS304BA): 2.72 N/20 mm (≈12.43 oz/in)

Applications
Nitto FIBERGUARD® 509H10P protects metal surfaces during fiber and CO₂ laser cutting, particularly suited to high‑speed and high‑performance laser cutting machines. The printed arrows facilitate correct orientation after cutting and allow the substrate to remain protected through subsequent handling operations (bending, punching, forming), reducing scratches and contamination.

Technical specifications

• Model: FIBERGUARD® 509H10P
• Backing: Co‑extruded LDPE (black/grey)
• Adhesive: Solvent‑based natural rubber, pressure‑sensitive
• Total thickness: 100 µm
• Peel adhesion on BA steel: 340 cN/25 mm
• Breaking strength (MD): 45 N/25 mm
• Elongation (MD): 350 %
• Weathering on BA steel: 100 h (ISO 4892‑2)
• Compatibility: Fiber & CO₂ laser cutting; stainless steel up to 2–3 mm depending on process
