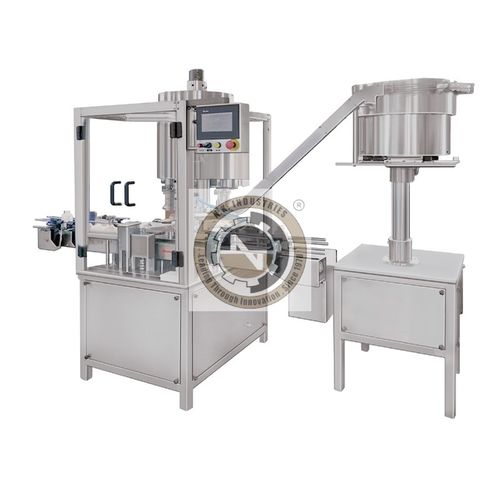

Rotary screw capping machine NKSC series

multi-headscrewautomatic

This inventive series of Automatic Multi head pick and Place Rotary Screw capping machine is extension to conventional shut pick screw capping technology. Here the Machine is equipped with specially designed two CAM systems with one cam lift the cap precisely and other CAM places that cap perfectly on bottle thus allow nearly 100 % Screw capping. The Series of Automatic Multi head pick and Place Rotary Screw capping machine contain a range of models according to number of screw capping head like 4 head, 6 head, 8 head. Particular Model can be selected according to output requirement. Output speed of this series is from 100 containers per minute to 220 containers per minute. Series of Automatic Multi Head screw Capping Machines are being integrated with astounding safety features like “safety clutches” at star wheel system and feed worm, “No Bottle No Cap system” & “Automatic cap feeder on off system” & “Magnetic hysteresis clutch head”. Depending upon type of Screw cap / closure, machine can be integrated with Mechanical cap feeder orientator or Vibrator Cap feeder. As an alternative, waterfall type elevator also available for mass storage of Screw cap. Machine can be made available with Toughened glass safety cabinet or Acrylic Glass safety cabinet as optional for safety feature. It can work with wide shaped of container like Round, Square with least formats part. All Screw capping models are being made using AISI 304 and aluminum alloy for trouble-free maintenance and long life. • CGMP Model, Compact Model & Modular System. • Parts Coming In Contact With Bottle / Screw Cap Are Made Out Of AISI 304, Good Housekeeping
