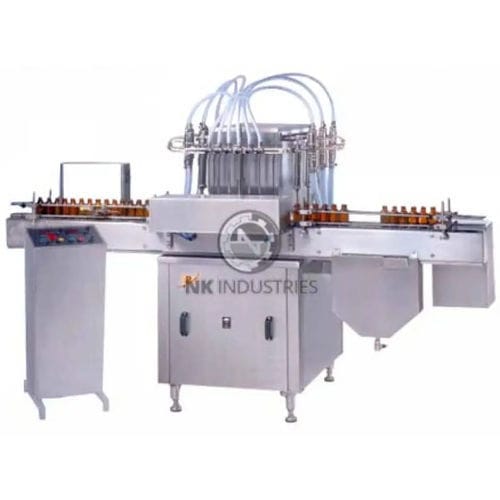

Automatic filling machine NKLF-100

bottlevialfor liquids

Automatic Six head Volumetric Bottle Liquid filling machine Model NKLF-100 is suitable for Round Bottle, Flat shape Bottles & Glass Vials with maximum speed of 90 containers per minute. The Machine output depends upon the various factors like nature of Liquids, Neck Diameter or Vial/Bottle and Fill Volume. Machine works on volumetric principle where syringes suck liquid from tank and fill it in container. Machine can be supplied with Buffer tank. For Container Sensing, it uses special background Suppression Sensor. The distinctive feature of this machine is "No bottle- No Filling" Machine structure is made using AISI 304 and all contact parts with liquid are of AISI 316L. Machine is capable to fill from 5 ml to 500 ml in single stroke and above 500 ml can be handled with double stroke. As an optional Machine can be equipped with Buffer tank of 150 liter capacity. • Quite A Compact & Modular Design • CGMP Model. • Machine Frame Made Using AISI 304. • All Contact Parts With Liquid Made Using AISI 316L. • Tool Less Guide Rails For Easy Adjustment For Container. • Fill Volume Can Be Adjusted With The Help Of Adjustable Eccentricity Of Ram Shaft. • Wide Range Of Syringe Selection Available To Fill From 5 Ml To 1000 Ml • Self Centring Device To Take Care Of Non Concentricity Of Container To Certain Extant. • Foaming & Spillage Is Avoided Due To Diving Nozzles. Long Liquid Collection Tray With Outlet Below Conveyor To Safeguards Transmission Assemblies. • No Bottle - No Filling Arrangement
