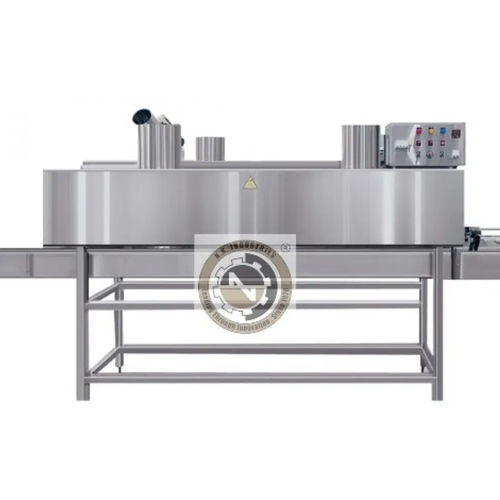

Electric shrink tunnel

for heat-shrink sleevescompactfor the pharmaceutical industry

N.K Industries is leading Manufacturer, exporter and supplier of wide variety of Electric Heat Shrink Tunnel. Automatic Electric Heat Shrink Tunnel MODEL: NKEHST-50 is used to shrink sleeve label on body of round plastic container. These machines work with variety of sleeve label made from PVC, PP, PETG and OPS films. Machine is composed of AISI 304 make Slat conveyor for feeding of the container. Speed of the Conveyor can be varied through provided speed port on the operating panel. Sleeve label has to be placed manually on plastic container and together they need to put on the conveyor. On conveyor before the tunnel, there are two Hot air blowers (Which below heated air) are installed which is used to lock the sleeve label on neck of container. After that, containers enter in tunnel which has sets of Pin heater which heat the air inside the tunnel and additionally, shrink tunnel contain two blower assembly. Blower is use to facilitate the forced convection type of heat transfer and due to that heated air get circulated inside the tunnel and which give uniform heated air around the travelling container inside the tunnel and thus, assure the label get shrink / sticked perfectly on body of container. • Compact & GMP Model • Parts Coming In Contact With Bottle Are Made Out Of AISI 304. • Machine Frame Is Made From High Quality AISI 304 Material. • All Gear Motor And Gear Box Are Of CE Certified. • Heating Blower For Uniform Transfer Of Heated Air In Tunnel • Advanced Set Of Pin Heater To Heat Up The Air. • Temperature Controller To Regulate The Heating Temperature • Outfitted With Emergency Button For Safety Concern.
