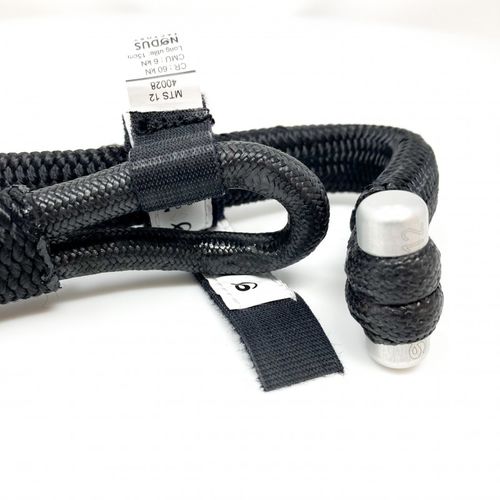

Soft lifting shackle MS® Cable-lift

textilesheathed

Ms® Cable-lift is a Dyneema® lifting shackle specially designed for lifting wire ropes, chairlifts, cable cars, railroad cables...etc. It's an ideal replacement for lyre shackles when it comes to unwiring ski-lift towers and maintaining their equipment. This product is : Complies with Machinery Directive 2006/42/CE Applications : Textile locking shackle used to lift wire rope or haul rope, by means of a lever hoist (Yale ERGO 360 type) connected at one end to a fixed mooring point and at the other end to wire rope (from ø 12 mm to ø 56 mm diameter), both static. lifting of wire ropes, chairlifts, cable cars, railroad cables. winching, towing forestry work, pruning, skidding Operation : Textile shackles are used to interface with the ends of the lifting device: Fixed point → Lifting device Cable → Lifting device Specifications: Complies with Machinery Directive 2006/42/EC Do not overstress Textile core Dyneema® DSK 99 - 12 strands - Pre-stretched and tensioned Dyneema® "Surgaine" body - 48 spindles DSK78 black - Swaged Textile clasp - Red DSK thread stitching, Dtex 517*3 - 3% elongation Textile clasp retaining T-Bone, Aluminium 7075 - Younk modulus 70 GPa, Anodized & hardened - Light grey tone Mixed hollow braid in pre-stretched 12 fx Dyneema® DsK 78 fiber, enzimed and sewn Twist-Lock® locking system: Velcro® - Polypropylene & Velour PA Black Surgaine de protection: PES® Vectran®- 48-spindle woven polyester Velour Noir
