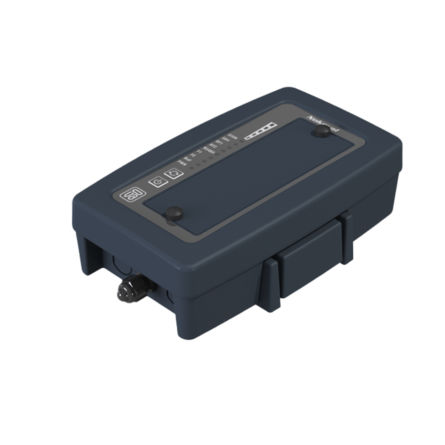

Mobile network base station Cell2-Sky-Link-RS485-LTE/-LAN

data transmission

Cell2-Sky-Link-RS485-LTE/LAN is a base station for Nokeval 433.92MHz Sky-transmitters and is part of Nokeval Sky product families. It receives and buffers radio packets to its non-volatile memory and transmits them either over cellular mobile data networks or local area networks to Ovaport cloud service, thus enabling reliable remote data acquisition from the field straight to the Ovaport servers located in a data center. Environment Storage temperature: -30…+60 °C, non-condensing Operating temperature: -20…+50 °C Operating humidity: 5…95 %RH, non-condensing Protection class: IP65, except power supply which is IP20 Enclosure material: Plastic (PC+ABS), silicon rubber Compatibility: Nokeval Sky series 433 MHz ISM band transmitters. Ovaport network service and NCloud Measurements Weight: About 850 g including the wall holder and an external antenna Maximum dimensions: Height 219 mm Width: 133 mm Depth: 68 mm User interface LEDs: 14 dual-color LEDs Buttons: 2 buttons: power on/off and multifunction button Internal memory for buffered results Type: Non-volatile FLASH memory Capacity: About 100 000 measurements Backup batteries Type: 2 pcs size D heavy-duty alkaline batteries Backup running time: About 2 days at +20°C temperature, about 8 hours at -20°C temperature 433.92 MHz radio transceiver (Sky) Description: Nokeval Sky protocol and radio transceiver using LoRa modulation Antenna: Internal Frequency: License-free 433.05 – 434.79 MHz Power: max 10 dBm E.I.R.P Open space range: Up to 10 km, dependent on configuration parameters Indoor range: Up to several hundred meters, dependent on configuration parameters Network connection, depending on the device type
