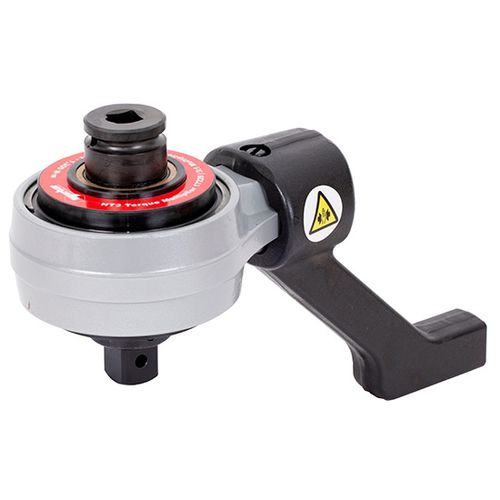

Manual torque multiplier HT3

manual torque multiplier
manual torque multiplier
manual torque multiplier
manual torque multiplier
Add to favorites
Compare this product


Characteristics

Type
manual
Torque

Max.: 2,700 Nm
(1,991.4 ft.lb)

Min.: 130 Nm
(95.9 ft.lb)

Description

The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque. Part number: 17220 EAN Bar Code: 5060207560108 NATO number: 5180-99-786-2391 Accuracy: ±4% Operates between: 96.00 - 960.00 lbf·ft 130.00 - 1300.00 N·m 5:1 torque multiplication, accuracy guaranteed better than ±4%. Supplied with two reaction bar styles for maximum versatility. Robust construction means minimal maintenance and long life. Supplied in a carrying case, the Highwayman is ideal for inclusion in the heavy vehicle kit. 1300 N.m version has a spare 3/4" output square included in the kit. If calibration is required, a UKAS accredited calibration certificate may be ordered (at extra cost)
