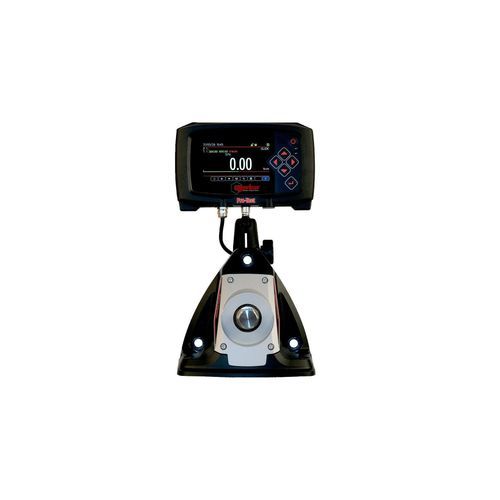

Portable torque meter 435 series
for torque wrenchesfor calibrationdigital

Add to favorites

Compare this product

Characteristics

Type

portable

Applications

for calibration, for torque wrenches

Other characteristics

electronic, digital, with graphic display, battery-powered, with external sensor, with PEAK function, with data logger

Torque

Max.: 1,500 Nm
(1,106.34 ft.lb)

Min.: 1.2 Nm
(0.89 ft.lb)

Accuracy

0.5 %

Overview

Guaranteed classification to BS 7882:2017 — Class 1 (±0.5% of reading) over the primary calibration range; Class 2 or better over the secondary range.
Supplied with UKAS accredited calibration certificate (CW direction); CCW calibration available as optional part PROTEST.CCW.
Supports rate-of-rise measurement required for ISO 6789:2017.
Three operating modes: Track (live display), Dial (records peak), Click (captures first torque peak).
Colour LCD touchscreen plus tactile input buttons; display and transducer hard-wired via durable cable; battery-ready with optional Norbar rechargeable battery pack.
New TruCheck-based operating software and interface; user-selectable languages (most European languages).

Available variants (grouped product)

Pro-Test 60 Series 3 Torque Measurement Tester | SKU 43568 | Torque range 1.2 - 60 N·m | Weight 3.2 kg
Pro-Test 400 Series 3 Torque Measurement Tester | SKU 43569 | Torque range 8 - 400 N·m | Weight 3.3 kg
Pro-Test 1500 Series 3 Torque Measurement Tester | SKU 43570 | Torque range 30 - 1500 N·m | Weight 3.9 kg

Included software & functionality

TestSync software for efficient result download, analysis and certificate printing.
User management: individual profiles and up to 150 presets for controlled, repeatable workflows.
On-board data logging for up to 2,000 readings, downloadable for certificate generation.

Technical specifications

Standards: BS 7882:2017 classification; supports ISO 6789:2017 rate-of-rise measurement.
Accuracy: Class 1 (±0.5% of reading) over primary calibration range.
Calibration: UKAS accredited certificate supplied (CW); optional CCW calibration PROTEST.CCW.
Operating modes: Track, Dial, Click.
Display: Colour LCD touchscreen with tactile buttons; housing and glass rated IK08.
Data: On-board memory for 2,000 readings; compatible with TestSync for downloads and certificate generation.
Software/UI: New operating software based on TruCheck visual and functional foundation.
Mounting: Transducer base configurable for horizontal or vertical shaft; multiple RAM® mounting points.
Connection & power: Hard-wired display-transducer cable; battery-ready with optional Norbar rechargeable pack.
Units & languages: All common torque units supported; multi-language interface (most European languages).
