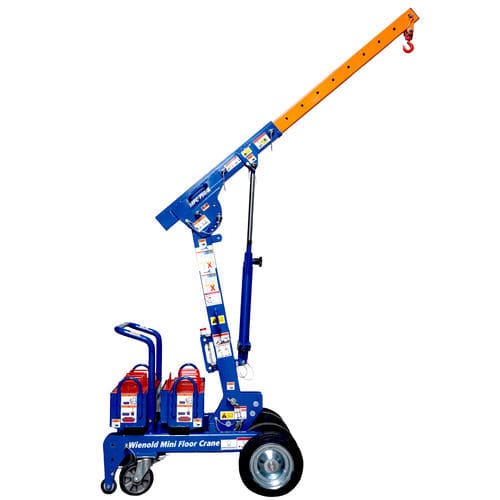

Mobile mini crane MFC 750 series

telescopicboomlifting

The MFC is a manual crane with telescope. It lifts loads up to 900 kg to a maximum height of 2.90 m. The MFC / K is the long version with rear-facing outriggers, which are equipped with one or two boxes each with 14 counterweights. The MFC can safely carry loads of up to 900 kg at a hook height of 2.90 m. With a full extended crane of 1.40 m, 410 kg payload remains. The MFC / Ks is the short version without outriggers. This has the advantage that it requires only 0.65 m x 1.20 m of floor space. Thus, the MFC / Ks performs well even in confined spaces: The MFC / Ks lifts 745 kg to 2.90 m hook height. With a full extended boom of 1.40 m, it is still an impressive 160 kg. The telescope is 8-fold adjustable in 14 cm of steps, from 0.26 m to 1.40 m of maximum display (before wheel). The high range is particularly advantageous when obstacles or a limited payload (e.g. of a balcony) prevents direct access. Loads are lifted with a few strokes using a powerful lifting cylinder. The lowering can be precisely controlled via a handwheel and locks automatically when released. For outdoor work, the MFC can be equipped with additional lateral outriggers to ensure high stability under wind load.
