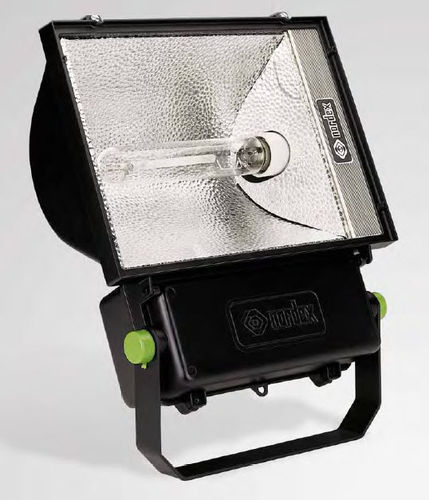

Discharge lamp floodlight MARS 1

IP65

RANGE The MARS 1® floodlight incorporates many advanced features, resulting in a product with high reliability and efficiency. Models are available to accommodate 15W/250W/400W HPS, 250W/400W MBI and 250W MBF lamps. APPLICATIONS For medium to large size areas where long duration of round the clock floodlighting is required i.e. sport fields, large car parks, building sites, general storage areas etc. CONSTRUCTION Aesthetically pleasing die-cast aluminium alloy body, incorporating a thermally separated lamp and control gear compartments. The front cover is formed from durable, toughened glass mounted into a die-cast aluminium frame. The body and frame are finished in electrostatically applied black or white polyester paint producing a very durable finish. The control gear cover is made of black injection moulded impact and heat resistant polycarbonate and, an extremly efficient silicon gasket provides IP 65 ingress protection. The gear tray is made of zinc coated steel sheet and the control gear module is easily removable from the gear compartment for an easy maintenance. Lamp changing is via two screws on the frame. The heavy guage steel bracket has an incorporated aiming device. The reflector is made from high purity anodized aluminium in order to maximize light output. All external screws are made of stainless steel .
