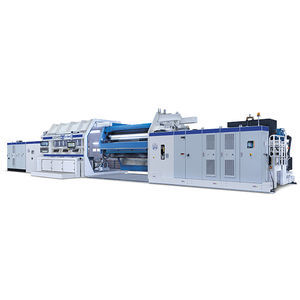

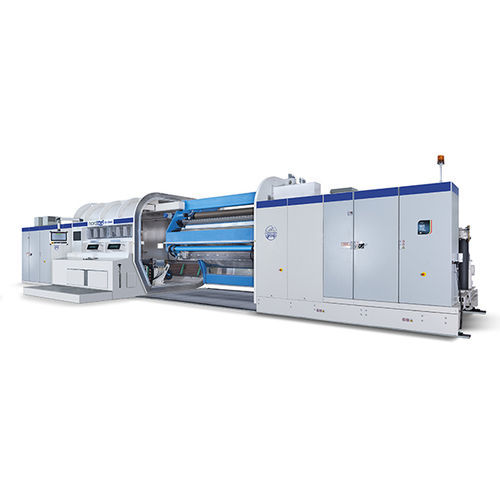

Vacuum metallizing system NordMet N-Gen 12-25

Proven metallizing technology powered by Nordmeccanica experience and organization. Unique ergonomic and operator friendly solutions such as the proprietary retractable deposition system. Unmatched performance achieved by use of the most effcient Vacuum system. Evaporation system designed to achieve the highest coating rate. Innovative rewinding technology for reliable handling of all substrates. Coating Width - 1250/1650/2000/2450 mm Reel Diameter - Ø 1000 mm Boats Number - 15/19/22/27 Average Power Consumption - 145/190/240/290 Kwh/h Average Output - 2700/3600/4400/5500 T/yr Flexibility & Productivity Usable for a variety of flm types including heat sensitive and outgassing materials. Reliable and environmentally friendly solutions. Easy access for Safe and fast operations, maintenance and cleaning. Safety Effcient control of energy consumption by tuning the power supply to the main points of use according to the actual requirement. Ergonomic machine control and full process inspection through direct or camera-assisted view. Easy access for system cleaning. Energy Efficiency The most effcient vacuum system available in the industry. Optimized diffusion pumps position and protection from process wastes contamination. The powerful evaporation system for high metal deposition rate and uniformity. Web Handling Technology Digital and integrated control. Preventive maintenance and remote support by virtual and augmented reality technology. Data acquisition, management and cloud storage. Strenghts Working Efficiency for maximum output ■Web speed up to 15m/s ■Roll diameter up to 1000mm. / 40” ■«Idle time» minimization
