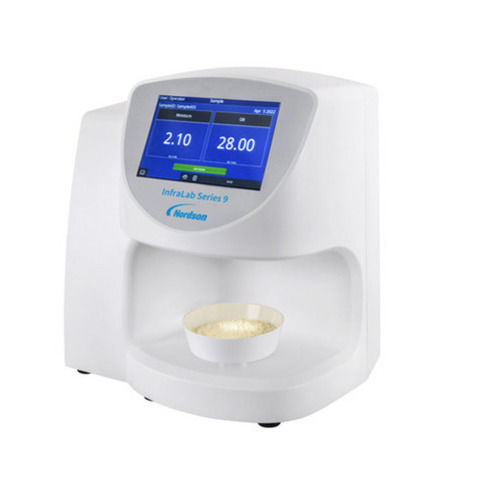

Oil analyzer InfraLab 9

for the food industryindustrialmoisture

Overview
The InfraLab Series 9 is an at-line analyzer based on multi-wavelength near-infrared (NIR) reflectance for rapid, non-contact measurement of moisture and other key constituents. Designed for food, tobacco and bulk industrial products, it delivers representative, lab-comparable results with minimal sample preparation and a typical analysis time of ~5 seconds.

Features & Benefits

• Representative process sampling to improve product control and consistency.
• Multi-wavelength NIR reflectance technology for simultaneous measurement of moisture and other constituents.
• Fast throughput — typical analysis in ~5 seconds reduces routine sampling time and cost.
• Intuitive touchscreen interface with passcode-protected user access; no special operator qualifications required.
• Non-contact measurement with automatic sample detection via a rotatable sample dish.
• Available in single- or multi-component measurement configurations to match application needs.

Applications
InfraLab At-Line Food Analyzer
Rapid measurement of moisture, fat/oil, protein, degree of bake/roast and related constituents in products such as animal feed, breakfast cereals, cheese, chocolate, coffee & tea, confectionery, cookies & biscuits, corn & maize (wet milling), crackers & crispbreads, dairy powders, flour & grain, seeds, meat, nuts, olive oil extraction, potato chips & crisps, snacks, spices, starch and sugar.

InfraLab At-Line Industrial Analyzer
Moisture and constituent measurement in building & construction materials, ceramics & clay, chemicals, detergents, fertilizers, fibers & polymers, industrial textiles, minerals, nitrocellulose, organic waste & biofeed, pharmaceuticals & nutraceuticals, wood & cellulose products and other bulk industrial materials.

InfraLab At-Line Tobacco Analyzer
Measurement of moisture, nicotine, total sugars, total volatiles, glycerol, propylene glycol and methanol in GLT, primary & strips, blended strips, re-dried cut lamina, final blend, WTS, CRS, re-dried stem, expanded tobacco, roll-your-own tobacco, pipe tobacco and cigar filler.

How it Works
InfraLab uses multi-wavelength NIR reflectance in a non-contact configuration. A sample dish is placed on the turntable; the instrument automatically detects the dish and starts the analysis. Onboard calibration tools allow alignment to reference laboratory methods.

Data & Connectivity
Substantial onboard storage (up to ~100,000 sample files). Data export via encrypted USB and Ethernet; supports transfer to PC and integration with LIMS or data-management workflows for traceability and further analysis.

Replace Laboratory Methods
Intended as a routine replacement for lab techniques such as loss-on-drying, Karl Fischer or gravimetric moisture tests and for chemical methods for fat/protein (e.g. Soxhlet, Weibull‑Stoldt, Kjeldahl) once calibrated. Advantages include speed, minimal sample prep and measurement of larger, more representative samples.

Characteristics / Technical specifications

• Typical analysis time: ~5 seconds per sample.
• Technology: multi-wavelength near-infrared (NIR) reflectance, non-contact.
• Measurement capabilities: moisture, fat/oil, protein, degree of bake/roast, nicotine, total sugars, volatiles, glycerol, propylene glycol, methanol (application-dependent).
• Configurations: single-component or multi-component options.
• Sample handling: sample dish on automatic turntable; automatic sample detection and analysis start.
• Onboard storage: capacity for up to ~100,000 sample files.
• Data export/connectivity: encrypted USB, Ethernet; PC export and LIMS integration supported.
• User interface: intuitive touchscreen; passcode-protected user log-in.
• Design: hygienic construction suitable for production areas; engineered for routine industrial use.
• Environmental robustness: measurements largely insensitive to typical ambient variations (temperature, relative humidity, factory lighting).
