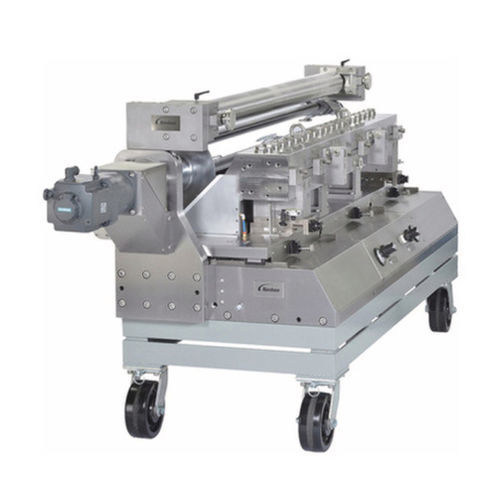

Slot die coater EDI®

multi-layer

A die positioner allows you to accurately place a slot die to achieve precise coatings across a wide range of substrates. Nordson offers a variety of slot die positioners, customized to each die in a new or existing production line. A properly designed positioner can deliver significant value to any operation, including reduced downtime for routine maintenance with access to the die. Premier™ Die Positioner Position Repeatability: ± 1.25µ Designed for on-roll or off-roll (tension) coating Easily integrated into new or existing production or lab lines Backing Roll TIR: 2.54µ On-Coat/Off-Coat Travel: 101.6mm (4.00”) Splice Jump Movement: 25.4mm (1.00”) Ball screw slides for fine die position adjustment Tension web idler roll and skew adjustment Vacuum box and regenerative blower Pneumatic actuation via air cylinders Compliant with CE design safety standards Versatile design allows for use with Premier single-layer fixed lip slot dies, multi-layer fixed lip slot dies, or double-sided coating applications Mounting options include table mounted, cart/platform mounted, or floor mounted systems Optional angle of attack and roll drive Ultracoat™ Die Positioner Position Repeatability: ± 2.00µ Pneumatic actuation via air cylinders Optional vacuum box and regenerative blower On-Coat/Off-Coat Travel: 152.4mm (6.00”) Splice Jump Movement: 12.7mm (0.50”) Standard Angle of Attack: ± 5° Available in three sizes for lab or production use Accommodates all Ultracoat dies in one station
