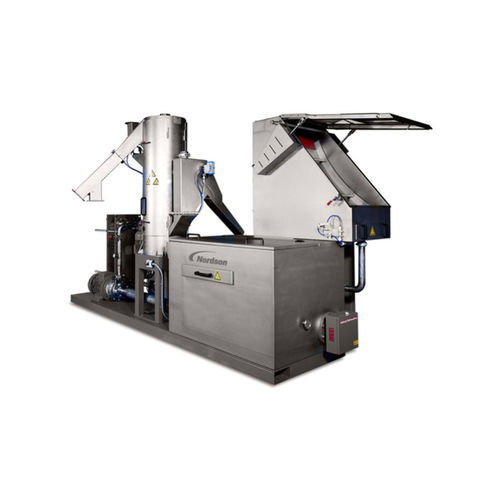

Temperature control system Combi-Line™

Overview
The BKG® Combi-Line™ is a tempered water system designed for demanding materials. It processes larger water volumes than the BKG® Master-Line™, making it suitable for applications with higher operating temperatures. Efficient water filtration and a controlled drying sequence support consistent pellet production.

One concept - Different processes
The Combi-Line™ offers multiple design variants and high flexibility to match specific process requirements. An optional curved sieve enables fines filtration down to 150 µm for processes with high fines generation.

Options and sizes at a glance
Mechanical specifications of BKG® Combi-Line™ tempered water systems
Model / Size | Combi-Line™ 1 | Combi-Line™ 2
Nominal Output | 1,200 kg/hr | 2,000 kg/hr
Pellet Dryer | TVE 2001 ED | TVE 2001 ED
Water Flow | 30 m³/hr | 40 m³/hr
Heating (optional) | 24 kW | 40 kW
Water Tank | 500 liters | 700 liters
Fines Filtration | Curved Sieve (optional) | Curved Sieve (optional)

Benefitting Your Process

• Increase Profitability: Improve extruder uptime through continuous processing; reduce operating costs via simple handling and accessible maintenance; adapt to evolving needs with modular design and upgrade options.
• Increase Quality: Achieve target pellet properties by combining different pelletizers, die plates, cutter hubs, and dryers; obtain pellets with good bulk characteristics for downstream processes; enable fines filtration down to 150 µm with the curved sieve; enhance temperature stability for better process control.
• Increase Convenience: Compact skid-mounted layout for easy line integration; simplified cleaning and maintenance with dual-door dryer access; user-friendly control system for adapting to changing process conditions.

Suitable Applications

• Compounding — flexible operation and maintenance for challenging material combinations.
• Masterbatch — highly automated processing for quick start-ups and low material losses during product or color changes.
• Recycling — reliable, automated operation minimizing downtime and operational costs.

Caractéristiques / spécifications techniques

• Models: Combi-Line™ 1 and Combi-Line™ 2
• Nominal outputs: 1,200 kg/hr (Combi-Line™ 1), 2,000 kg/hr (Combi-Line™ 2)
• Pellet dryer: TVE 2001 ED (both sizes)
• Water flow: 30 m³/hr (Combi-Line™ 1), 40 m³/hr (Combi-Line™ 2)
• Optional heating: 24 kW (Combi-Line™ 1), 40 kW (Combi-Line™ 2)
• Water tank capacities: 500 liters (Combi-Line™ 1), 700 liters (Combi-Line™ 2)
• Fines filtration: optional curved sieve enabling filtration down to 150 µm
• Design: skid-mounted, modular, dual-door dryer access for maintenance
